Global Laser 1266-26-000 Laser Module, 635nm 0.8mW, Diode, TTL control Ellipse pattern 3.3 → 5 V

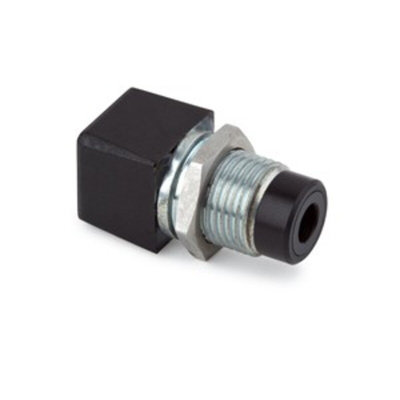

The Gated Cameo is a miniature laser diode module that has a threaded barrel for easy bulkhead mounting which ensures good thermal contact between module and heat sink. This new concept in laser module design allows a laser diode, an adjustable collimating lens and a drive circuit to be incorporated within a body which is just 24mm long and all without compromising the performance.

The Gated Cameo offers high output power stability with transient and polarity protection, as well as electrical isolation between diode and case. It has a latching connector that improves reliability. An A/R coated user adjustable collimating lens produces an elliptical output beam which can by focused to produce fine spots. It also features a third TTL modulation input which allows the user to turn the input on and off with a bandwidth of ≥100Khz. A fourth wire which controls the slow speed enable input allows the user to switch the laser on and off from interlocks and switches.

A lens models can also be fitted with a range of external optics including lines, cross and diffractive patterns.

210-7345: 1266-26-000, Gated Cameo 635nm 0.8mW A Lens
210-7346: 266-27-000, Gated Cameo 635nm 2.8mW A Lens

Compatible Optics

697-3579: 9° Cross
697-3581: 60° Cross
127-1550: 100° Cross
127-1547: 4 X 4 Grid Pattern
210-7335: 8° Line
210-7332: 16° Line
127-1548: 18° Line
127-1549: 30° Line
697-3569: 60° Line
697-3572: 90° Line
210-7331: 125° Line
697-3594: 100° Line + Dot
