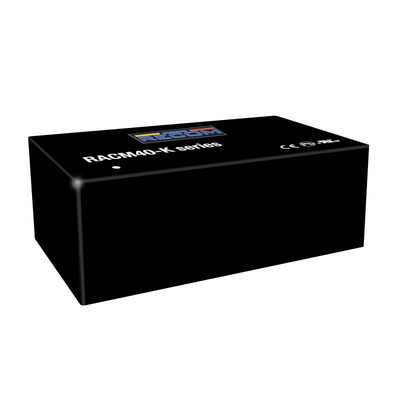

Recom Switching Power Supply, RACM40-15SK-T, 15V dc, 2.667A, 40W, 1 Output, 80 → 264V ac Input Voltage

RECOM Switching Power Supply, 80 to 264V AC Input Voltage Range, 15V DC Output Voltage - RACM40 Series - RACM40-15SK-T

When you're juggling different voltages in your industrial system, pick up this switching power supply from RECOM. It accepts a wide input voltage range between 80 and 264V AC, making it a versatile choice. As it generates a reliably steady output voltage of 15V DC, you can count on it to support your low-power devices. A high efficiency rating of 90% indicates the unit wastes very little energy as heat, so it doesn't get hot under the collar when working with demanding applications.

Features & Benefits

• Speedy start-up time of 160ms to get your equipment running in a flash
• Long 1.6mm pins and threaded inserts boost resistance to vibration and shock
• Safe for use in demanding environments, thanks to a wide operating temperature range of -40°C to +85°C
• Typical output accuracy of +1% to ensure precise voltage conversion

Applications

• Medical devices
• Domestic electronics
• Manufacturing equipment

What protections does this device have?

This component is protected against short circuits, overvoltage and reverse voltage to keep your system safe from electrical damage.

Datasheet - RACM40-15SK-T
