4D Systems SK-gen4-43DCT, gen4-HMI Display Module 4.3in Capacitive Touch Screen Starter Kit With Diablo16

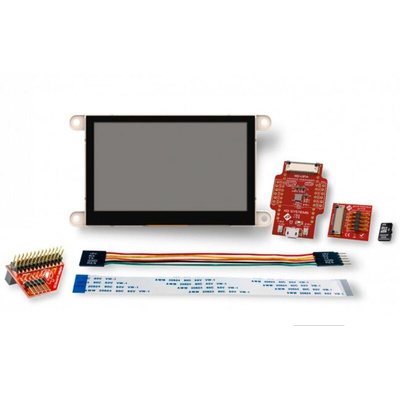

The 4d Systems SK-gen4 series of product is a starter kit that provides all the hardware that is required to get the user up and running. By purchasing the display solution in a starter kit allows you to take full advantage of all of the features of the 4D Systems Display Solution and try out each of the 4D Woskshop4 Environments prior to settling with the preferred feature-set.

For use with 4D Arduino Adaptor Shield-II, 4D Serial Pi Adaptor and gen4-PA.

480 x 272 Resolution, RGB 65K true to life colours, TFT Screen with integrated 4-wire Capacitive Touch Panel (DCT)
6 banks of 32750 bytes of Flash memory for User Application Code and Data
32Kb of SRAM purely for the User
16 General Purpose I/O pins for user interfacing, which include 4 configurable Analog Inputs

Resolution\t480x272
Brightness\t475 cd/m2
Controller\tDIABLO16
Storage Temperature\t-30°C to +80°C
Connector\t30 way FPC
Display Viewing Area (mm)\t95.04 x 53.86
Module Dimensions (mm)\t127.60 x 69.30 x 8.10
Supply Voltage\t5.0V DC
Colours\tRGB 65K

Datasheet - SK-gen4-43DCT
