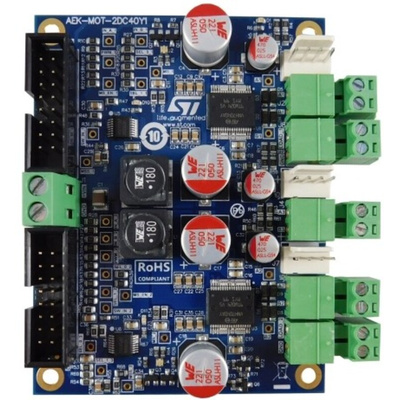

AEK-MOT-2DC40Y1, STMicroelectronics Automotive-grade Dual DC motor driver up to 35A each Current Controller for AEK-MOT

The AEK-MOT-2DC40Y1 is a very compact solution for multi DC motor driving applications, embedding all the driver and signal decoding functions on the same board.

Together with current sensing capability, the AEK-MOT-2DC40Y1 features three independent encoder inputs. The DC motor drivers have separate half-bridge driving which allows up to three separated motors with only two devices, using an appropriate driving sequence.

The motor driver is ideal for two-wheel applications and allows engineers to build highly compact motor control solutions. The two high-side drivers facilitate additional driving for system actuators (unidirectional DC motor, LED, pump, etc.).

All Features

Dual DC motor driver
Parallel driving
Bi-directional
Output current up to 35A each device
Three DC motor drivers
Up to two in parallel
Bi-directional
Dual high-side driver
Parallel driving
Suitable for DC unidirectional driving
One channel up to 85A and the other up to 25A
Optional encoder input
Three separated connectors
Size 65mm x 83mm
Included in AutoDevKit initiative
RoHS compliant

Datasheet - AEK-MOT-2DC40Y1
