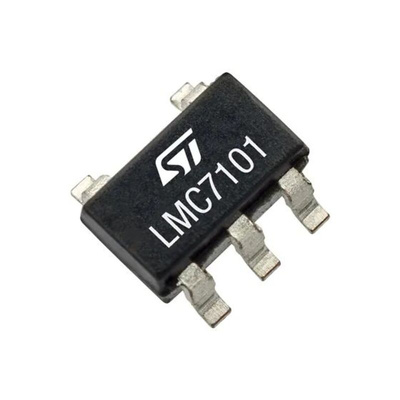

LMC7101ILT STMicroelectronics, Op Amp, 900kHz 10 MHz, 16 V, 5-Pin SOT-23

The LMC7101 operational amplifier benefits from STMicroelectronics 16 V CMOS technology to offer state-of-the-art accuracy and performance in the smallest industrial packages. The LMC7101 offers an outstanding speed/power consumption ratio, 900 kHz gain bandwidth product while consuming only 250 μA at 16 V. Such features make the LMC7101 ideal for sensor interfaces and industrial signal conditioning. The wide temperature range and high ESD tolerance ease use in harsh automotive applications.

• Low power consumption: 235 μA typ. at 5 V


• Supply voltage: 3 V to 16 V


• Gain bandwidth product: 900 kHz typ.


• Offset voltage: 3 mV maximum


• Low input bias current: 1 pA typ.


• High tolerance to ESD: 4 kV


• Wide temperature range: -40 °C to +125 °C


• Rail-to-Rail input and output


• SOT23-5 package

Datasheet - LMC7101ILT
