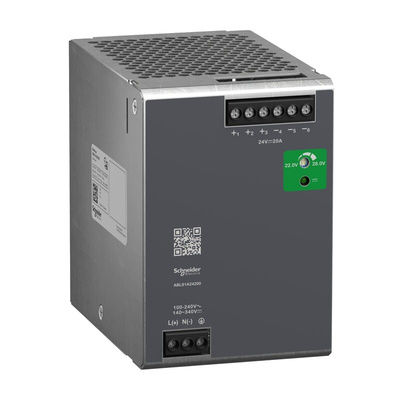

ABLS1A24200, Schneider Electric ABLS1A DIN Rail Power Supply, 100-240 V, 140-340 V ac, dc Input, 24V dc Output, 20A Output, 480W

Schneider Electric DIN Rail Power Supply, Single Phase Type, Overvoltage Protection - ABLS1A Series - ABLS1A24200

When electrical stability is critical, turn to this DIN rail power supply from Schneider Electric. It provides a rated output current of 20A at 24V DC to keep industrial equipment ticking along. For easy compatibility, the versatile device accepts inputs in a broad AC and DC range. Integrated overvoltage and short-circuit protections shut down surges to protect your circuits from damage. Thanks to compact dimensions of just 128.5 (D) x 123.6 (H) x 85.5mm (W), you can rest assured it slots easily into a crowded cabinet.

Features & Benefits

• LED status indicator at the front for convenient monitoring

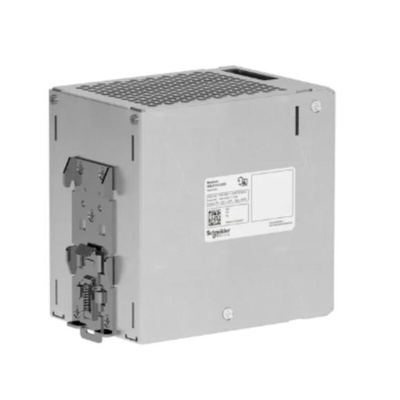

• Mounts directly onto your DIN rail for fast and efficient installation
• IP20 rating means it's protected from objects over 12mm, including fingers
• Mean time between failures of 700,000h means it performs reliably in the long term

Applications

• Automated production lines
• Pharmaceutical manufacturing
• Water treatment plants

What input voltages does this device accept?

The unit works with a broad range of inputs from 100V to 240V AC and 140V to 340V DC. It then conveniently converts them into a single DC output.
