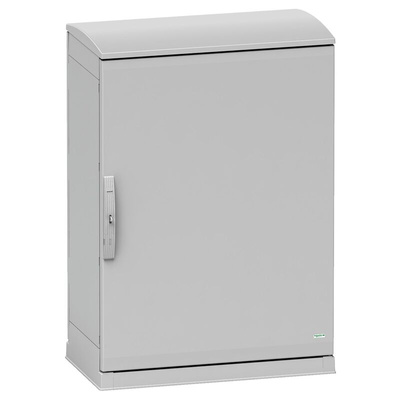

NSYPHDZT1074P, Schneider Electric Thalassa PHD Series Fibreglass Reinforced Polyester Wall Box, IP55, 1093 mm x 750 mm x 420mm

Schneider Electric Thalassa PHD Polyester Outdoor Heavy-Duty Wall Box Enclosure.

From Schneider Electric this is the Thalassa PHD wall box enclosure excellent for us in public areas and in harsh environments protecting components from outside influences. The wall box is polyester insulating reinforced with a double layer of fibreglass ensuring protection from vandalism. Some of the reasons making the Thalassa PHD wall box excellent in the enclosure sector is the insulation class II, anti-pressure and shock resistance plus the anti-poster enclosure door.

Thalassa PHD Wall Box Benefits.

The standard version is supplied with the following.

• A curved canopy.


• Handle with key lock (1242E type) and padlock.


• Door retainer.


• Plastic document pocket (A4 size).


• Aluminium gland plate (floor-standing enclosures).


• Features of the PHD Wall Box Enclosure.


• IK 10 protection.


• Sharp-edge objects resistance (IEC61439-5).


• IP 55 for floor standing.


• IP 65 for wall-mounting.


• Lightweight material, easy to work with.


• High electrical hazard protection (strengthened insulation 5kV).


• Resistant to salty or chemical environments (corrosive conditions.)


• Sun radiation protection (RAL 7035).


• Up to 500 kg load capacity.


• Fire resistant.


• Lasts for more than 30 years in normal conditions (IEC 62208).

Thalassa PHD Wall Box Enclosure Applications.

• Energy and Infrastructure.


• Water & Wastewater (WWW).


• Airport’s.


• Marine.


• Road Tunnels.


• Oil and Gas.


• Industry.


• Mining, Mineral & Metals (MMM).


• Buildings.


• Hotels, Resorts, theme parks, sport complexes.


• Telecom.

NSYPHDZT1074P – IP55 Thalassa PHD Heavy Duty Outdoor Floor Standing Wall Box Enclosure.

• Multi-purpose enclosure.


• Excellent for outdoor heavy-duty use and protection.


• PHDXT Model.


• Floor standing.


• Sealed body with a plain door 120° (opening left or right).


• 2 points lock, handle with 1242E key lock and padlock.


• Hinges, Canopy, and cable gland plate are removable.


• Made from Polyester double reinforced with fibreglass Grey RAL 7035.


• Class II conforming to IEC 61439-1 2011.


• IP55 conforming to IEC 60529.


• IK10 conforming to IEC 62262 (plain door).


• Vandal-proof conforming to EN/IEC 61439-5.


• 960 °C conforming to IEC 62208 Fire Resistance.

What is Included?

• 1 door in polyester double reinforced with fibreglass.


• 1 door retainer in steel with anti-corrosive coating.


• 1 document pocket in plastic A4 format.


• 1 cable gland plate in aluminium.


• 1 body with integrated plinth in polyester double reinforced with fibreglass.


• 1 canopy in polyester reinforced with fibreglass.

Approvals

Electrical Class Class II conforming to IEC 61439-1 2011\n.

Standards

UL 508 A, IEC 61969-3, IEC 61439-5, IEC 62208.
