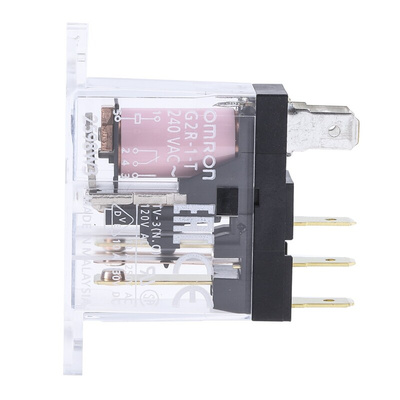

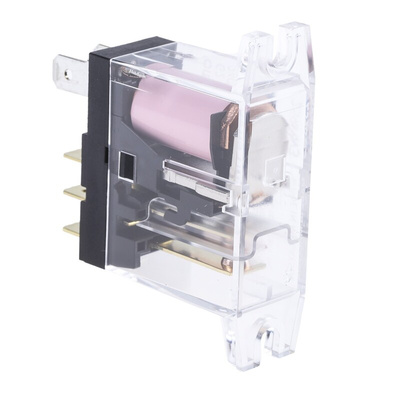

G2R-1-T AC240, Omron Panel Mount Power Relay, 240V ac Coil, 10A Switching Current, SPDT, Реле

Quick Connect Terminal - G2R Series

Quick connect terminals (upper bracket) - ideal for panel mounting
8mm creepage/clearance
H38 x W14 x D45 mm (H includes QC terminal, FC = 38mm)

Approvals

UL508; CSA22.2; EN 61810-1; SEV; SEMKO

G2R-1-T-AC240 General Purpose Power Non-Latching Relay.

The Omron G2R-1-T-AC240 Power non-latching relay is a standard relay, re-designed with pre-tinned terminals. This 1-Pole model includes Quick-Connect terminals, unsealed, enclosed and has an AC/DC coil rating with high sensitivity and high capacity available. A safety design with up to 5000 V dielectric strength between coils, contacts plus surge resistance.

Features and Benefits.

•\tGeneral purpose standard power relay.
•\tQuick-connect terminals.
•\tUnsealed. AC/DC coil rating.
•\tSPDT contacts NO (normally open) / NC (normally closed).
•\tRated voltage 240 V ac.
•\tRated current 4.7 mA (50 Hz), 3.8 mA (60 Hz).
•\tCoil resistance 30000 Ω
•\tMust operate voltage 80% max.
•\tMust release voltage 305% min.
•\tMax voltage 100% (at 23°C).
•\tPower consumption 0.9 VA at 60 Hz (approx. 0.7 VA at 60 Hz).

Contact Ratings.

•\tRated load 10 A at 250 V ac / 30 V dc.
•\tRated carry and operating current 10 A.
•\tMax operating voltage 380 V ac, 125 V dc.
•\tMax switching capacity 2500 (250) VA, 300 (30) W.

Additional Features.

•\tContact resistance 30 mΩ max.
•\tDielectric strength 5000 V ac, 50/60 Hz for 1 min between coil and contacts.
•\tDielectric strength 1000 V ac, 50/60 Hz for 1 min between contacts of the same polarity.
•\tVibration resistance – destruction and malfunction 10 to 55 Hz, 1.5 mm double amplitude.
•\tShock resistance – destruction 1000 m/s² (approx. 100 G).
•\tShock resistance – malfunction 200 m/s² energized (approx. 20 G), 100 m/s² not energized (approx. 10G).
•\tOperation temperature – ambient -40°C to 70°C, no icing.
•\tRelay weight approx. 17 g (plug-in terminal approx. 20 g).

CSA LR31928

UL E41643

VDE 40015012

Datasheet
