AZ 15/16-B3, Schmersal Actuator for Use with AZ Safety Switch

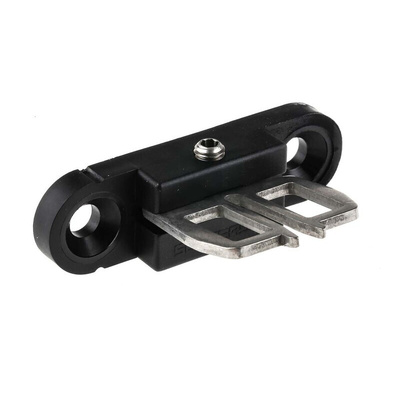

Schmersal Actuator for AZ Safety Switch - AZ 15/16-B3

Need an actuator for use with the AZ safety switch? This actuator from Schmersal is angled and flexible, making it simple to install in hard-to-reach places. The AZ safety switch is an interlock switch used with guards or gates around hazardous equipment to protect both operators and machinery. It allows current to pass to equipment when the guard is closed and cuts the power when it's open for enhanced workplace safety.

Features & Benefits

• Minimum radius of 32mm for use in small spaces
• Designed for hinged safety guards for use in a variety of safety applications

Applications

• Mining and quarrying industry
• Rail and transport applications
• Factory automation

How do I install this actuator?

The actuator is simple to install as it can be firmly secured in place using one-way screws. When welding or riveting the actuator, make sure that the insertion depth is not altered to ensure proper operation.

When should I use a hinge switch?

Hinge switches like the one this actuator is compatible with can be used to close protective gates or guards in unsafe conditions.
