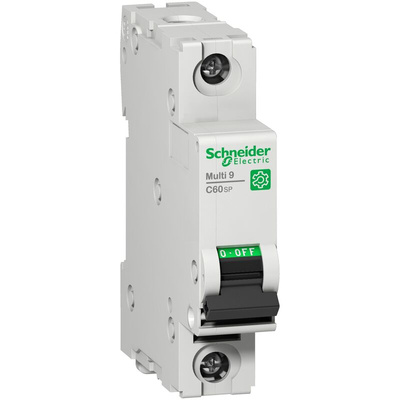

M9F21106, Schneider Electric Multi 9 C60SP MCB, 1P, 6A Curve B, 415V AC, 60V DC, 20 kA Breaking Capacity

Schneider Electric MCB, Toggle Control Switch, 500V AC Rated Insulation Voltage - C60SP Series - M9F21106

Protect appliances in your home or office from short-circuit faults with this Schneider Electric MCB. It features a thermal-magnetic tripping system that cuts power to connected devices in the event of a short circuit or overcurrent, preventing damage and minimising maintenance downtime. As a type-B unit, it's triggered at three to five times its rated current of 6A, making it suitable for sensitive applications with resistive loads. Thanks to a front toggle switch, it's easy to reset this unit after it trips.

Features & Benefits

• DIN-rail mounting is simple and doesn't need any tools, saving time and effort
• Compatible with both AC and DC networks, for versatility
• Mechanical durability of 20,000 operating cycles ensures long-term use
• Narrow width of 18mm for space-efficient installation in tight setups

Applications

• Domestic wiring
• Process and packaging equipment

What's meant by the rated impulse withstand voltage of an MCB?

The rated impulse withstand voltage of an MCB is the amount of surge input that it can handle without damage. For this unit, that value is 6kV, meaning it can handle heavy inrushes.
