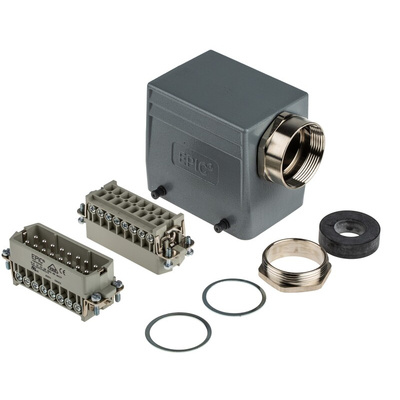

10530000+10540000+10577000+129, Epic Contact Plug Kit, 32 Way, 10A, Male, H-A, 440 V

LAPP Heavy-Duty Power Connector, IP65 Rating, Aluminium Alloy Housing - EPIC Series - 10530000+10540000+10577000+129

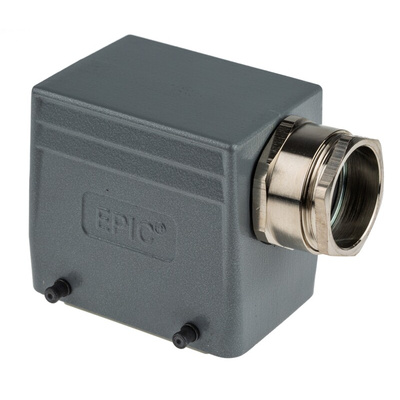

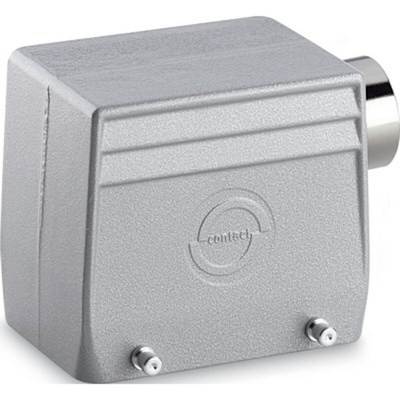

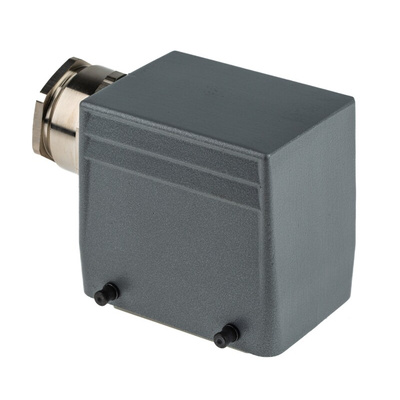

Scratching your head over cables that need to plug in at 90°? This heavy-duty power connector from LAPP solves the problem. A cable entry point on the side means you can angle your connection without bending wires. The housing is made from aluminium alloy, to fend off corrosion in damp industrial settings. To keep contaminants at bay, nitrile rubber seals close off the connection points.

Features & Benefits

• Wide operating temperature range between -40°C and +100°C for use in extreme environments
• Side bolts give you the option to add levers for versatility
• Flame-retardant properties for workplace safety
• IP65 rating indicates it's dust-tight and resistant to water jets from any angle

Applications

• Manufacturing equipment
• Process control
• Railway industry

How many contacts does this heavy-duty power connector have?

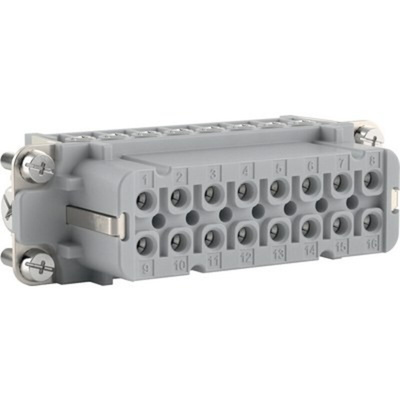

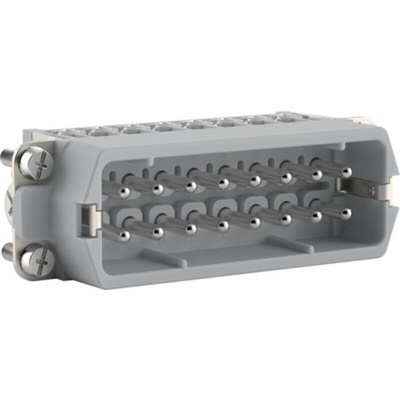

The unit has 32 contacts made from silver-plated copper to boost durability.

Approvals

UL listed; CSA certified; SEV

Metal Plug Kits

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket
