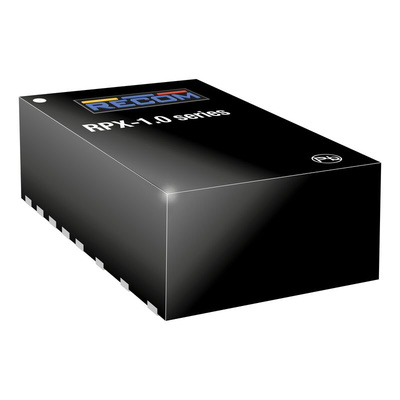

RPX-1.0-CT, Recom RPX DC-DC Converter, 0.8 → 30V dc/ 1A Output, 4 → 36 V dc Input, 2.7W, Surface Mount, +125°C Max

RECOM DC-DC Converter, Single Output, QFN Package - RPX Series - RPX-1.0-CT

Looking for a buck converter to deliver power to your industrial system? Pick up this RECOM DC-DC converter for the job. It steps voltage down and delivers between 0.8 and 30V DC to suit your chosen task. Thanks to a wide input voltage range of 4 to 36V DC, this is a versatile option. Plastic casing shields the device from dirt and dust in challenging environments, so you can be sure of its long service life. Simple surface mounting means that installation is straightforward.

• 87% efficiency means minimal power is lost through heat
• High mean time between failures of 6 million hours for long-term dependability
• Compact dimensions of 5 (L) x 3 (W) x 1.6mm (H) means it can be used in compact setups
• Inbuilt overcurrent and short-circuit protection protects against damaging surge events

Applications

• Industrial power supplies
• Food and beverage production
• Transportation industry

The Recom RPX-1.0 is a buck converter with an integrated inductor in a compact 3mm x 5mm x 1.6mmthermally-enhanced QFN package. The input range is from 4 to 36VDC, allowing 5V, 12V, or 24V supply voltages to be used. The output voltage can be set with two resistors in the range from 0.8 up to 30VDC. The output current is up to 1A and is fully protected against continuous short-circuits, output overcurrent, or over-temperature faults.

How much does this device weigh?

It has a buck regulator power module with integrated shielded inductor
It has 36 VDC input voltage and 1A output current
SCP, OCP, OTP, and UVLO protection
3.0 x 5.0mm low profile QFN package
Flip-chip technology for improved thermal management
Enable, power good, soft start, and sync functions

This unit weighs 0.095g, meaning it's ultra-light and minimises strain on your setup.

Can I use this converter in harsh industrial conditions?

As it operates safely in a broad temperature range from -40°C to +125°C, it's suitable for use in challenging environments.
