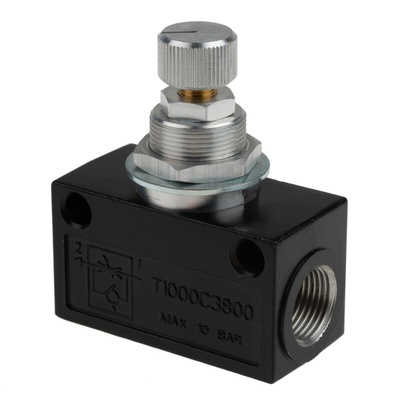

T1000C3800, Norgren T1000 Series Threaded Flow Regulator, G 3/8 Female Inlet Port x G 3/8 Female Outlet Port

IMI Norgren Flow Regulator, G3/8 Female Inlet and Outlet Port - T1000 Series - T1000C3800

Easily adjust the operating speed of an actuator with this flow regulator from IMI Norgren. By simply turning its knob to the open or closed position, you can manually control the flow rate of air in your pneumatic system. A robust aluminium body withstands rigorous wear and tear and resists corrosion, making this a suitable option for harsh environments. For versatility, you can mount this unidirectional unit either on the in-flow side or the exhaust side of a component.

Features & Benefits

• Nitrile rubber seals that withstand compression are suitable for higher-pressure systems of up to 10 bar
• Captive regulator needle won't blow out when unscrewed for added safety
• Puts minimal strain on a mounting panel or wall due to light weight of 150g
• Wide operating temperature range of -20°C to +80°C provides resistance in extreme settings

Applications

• Agricultural and earth-moving machinery
• Automated assembly lines
• Packaging warehouses

Can I attach this flow regulator directly to my pneumatic hose?

Yes, this is an inline flow regulator, which means you can directly attach it to compressed air pipes and integrate it into your pneumatic circuit.

What material is this regulator's indicator needle made from?

This component's indicator needle is made from durable brass for longevity.

Block Form Flow Regulators Data Sheet
