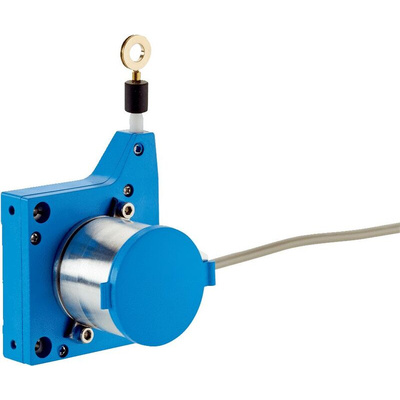

BCG05-K1KM01PP, Sick EcoLine Series Absolute Absolute Encoder

Overview

At a glance

Measured lengths: 1.25 m ... 10 m
Modular measuring system with a wide selection of interfaces/measuring lengths
Very small, slim housing (55 mm ... 190 mm) with spring integrated in the measurement drum
Light yet shock-proof and temperature-resistant plastic housing
Analog interface with teach-in function at the encoder

Your Benefit

Space- and cost-saving design thanks to slimline mechanics
Numerous possible combinations of interfaces and measuring lengths
Advanced programming options lead to a reduction in the amount of variants, save costs, and reduce storage
Analog interface speeds up commissioning and cost-effective interface card can be used

The slim design of the EcoLine family is ideal for applications with limited space. Its modularity makes it suitable for a large selection of measuring lengths,
interfaces and encoders. Due to the into the drum integrated spring as well as the adaption without coupling, it is possible to achieve high precision and stability. The special nozzle serves to protect the measuring wire from damage caused by vibration. The intuitive teach-in function provided in analog options also enables
easy system integration.

Applications

Measuring height and tilt of automated guided systems
Height measurement in small warehouse systems
Applications in medical technology (operating tables, MRT)
Height measurement of scissors lifting platforms
Height measurement of overhead conveyors in the automotive industry
Height measurement when seat is supplied
Vertical positioning in the electrical overhead conveyor
Measurement of the fork lift height
Height monitoring at the scissor lift table
Detection of the position height
Safe goods transport with automated guided vehicles (AGV)
Precise monitoring of manually guided screwdriving stations
Automated port loading and FOUP identification
Measuring forklift height with wire draw encoders
Measuring vertical and horizontal fork movements of a forklift
Pallet handling with narrow aisle forklifts at great heights
Wire draw encoder for support and boom positioning on the mobile crane
Aerial ladder positioning on aerial rescue trucks

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - BCG05-K1KM01PP
