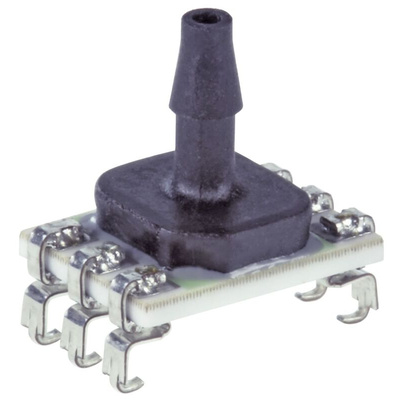

ABPMANV060PG2A3, Honeywell Gauge Pressure Sensor, 420kPa Operating Max, PCB Mount, 6-Pin, 1724kPa Overload Max, SMT

The Honeywell ABP Series are piezo resistive silicon pressure sensors offering a ratio metric analogue or digital output for reading pressure over the specified full scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include nonlinearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analogue and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards

Measures gage and differential pressures
Total Error Band (see Figure 1): ±1.5 %FSS
Liquid media option: Allows for wet/wet operation on dual ported devices
Industry-leading long-term stability: ±0.25 %FSS
Industry-leading accuracy: ±0.25 %FSS BFSL
As small as 8 mm x 7 mm

Datasheet - ABPMANV060PG2A3
