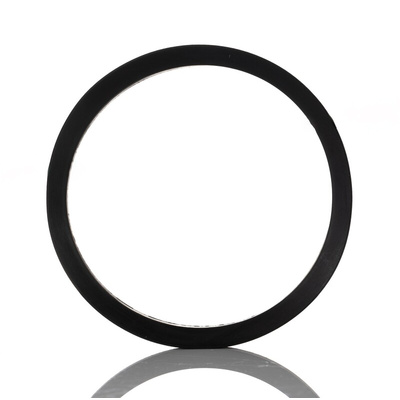

SKF TSN 316 A Ring Seal -, 80mm ID

SKF Ring Seal, Nitrile Rubber and Steel Construction, 90mm Shaft Diameter, 141mm Housing Groove Diameter - TSN 316 A

Keep your insert bearings running smoothly with this ring seal from SKF. Its V-shape design fits inside the groove of your plummer block to plug the gap and lock out contaminants. Turning with the shaft, the seal doubles up as a flinger during operation to direct dirt, moisture and oil back out of the housing. Made from nitrile rubber, it has high tensile strength and resistance to heat. This means you can be sure it's durable in industrial environments.

Features & Benefits

• Vulcanised attachment between the seal and washer ensures a strong hold
• Designed as a single, washer-shaped unit for easy installation
• Use as a primary or secondary seal for versatility
• Integrated steel washer provides bolstering to maintain its shape at circumferential speeds up to 12mps

Applications

• Conveyors
• Fans and blowers
• Rolling mills
• Agricultural machinery
• Industrial gearboxes

What size groove does this ring seal fit into?

This component fits inside housings with a groove diameter of 141mm, making it suitable for use with the SNL range of plummer blocks (213-2030).

Datasheet - TSN 316 A

Catalogue - SNL Plummer Block Housings
