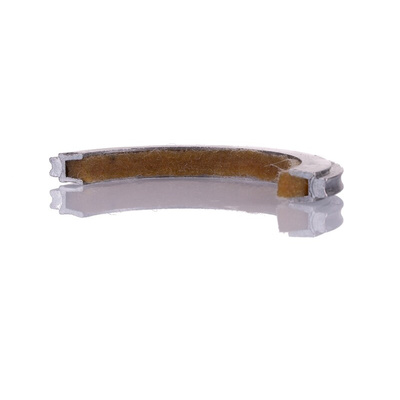

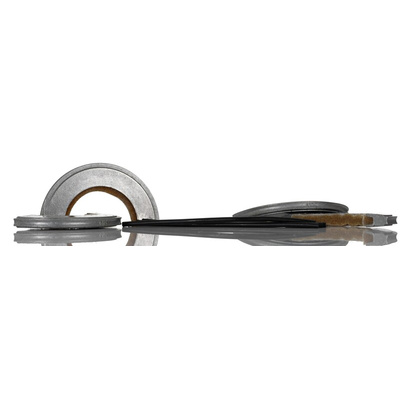

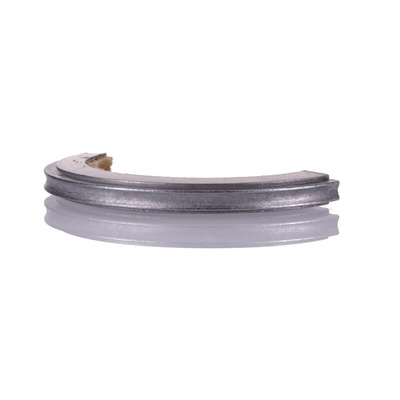

SKF TSN 610 C Ring Seal -, 45mm ID

SKF Ring Seal, Felt Construction, 45mm Shaft Diameter, 78mm OD - TSN 610 C

Stop contaminants in their tracks from damaging your shaft and insert bearings with this ring seal by SKF. Thanks to the felt construction, it won't hinder axial movements and works with peripheral speeds up to 4mps without leaving a gap. The versatile accessory opens up a little at faster speeds to work as a non-contact seal. This lets your machines keep rolling with minimal wear and tear. Formed as a washer with a narrow 8mm width, it slots neatly into the groove of your plummer block to make installation a breeze.

Features & Benefits

• Compatible with adapter sleeve fittings for greater versatility
• Felt has oil inside it to ensure friction-free movement
• Designed with aluminium and nitrile rubber elements to boost strength and durability

Applications

• Industrial automation
• Agricultural equipment
• Material handling
• Processing plants

How compatible is this ring seal?

With an outside diameter of 78mm, this is a widely compatible unit. It's suitable for protecting a bearing mounted in an SNL (213-2023) and SE (506-741) series plummer block.

How much does this ring seal weigh?

It's a lightweight part at just 50g, so it won't add unnecessary pressure to your setup.

Datasheet - TSN 610 C

Catalogue - SNL Plummer Block Housings
