SKF TSN 613 L Ring Seal -, 60mm ID

SKF Ring Seal, Plummer Block Housing Split, 20mm Mount Hole Size, 60mm ID - TSN 613 L

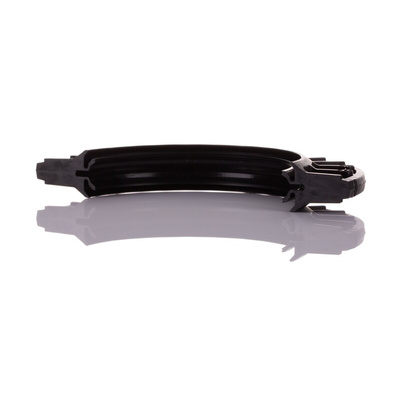

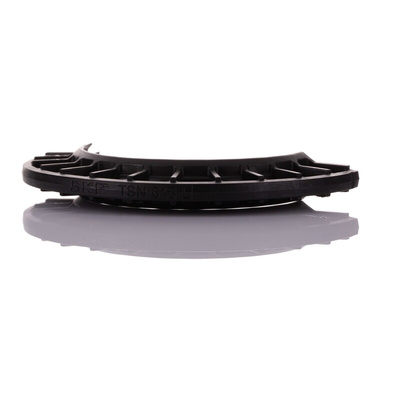

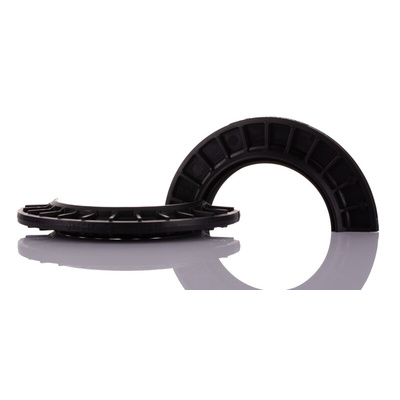

Use this ring seal from SKF to secure bearings inside plummer block housing in a cylindrical bore. Its inside diameter of 60mm means it's suitable for larger housing types. The split-seal design means there’s no need to dismantle your setup, making it easy to install. As the seal is made from a durable thermoplastic polyester elastomer, you can be sure of a long service life. The four-lip style makes it easy to keep lubricated, which means it can withstand high shaft speeds of up to 13m/s.

• Operating temperature range of -40°C to +100°C so it's suitable for harsh environments
• Lightweight at 0.044kg to minimise load
• Two seals per pack for ease of replacement
• Design allows for one degree of misalignment during installation for ease of use
• Resistance-lowering surface for quiet, smooth operation

Applications

• Transmissions
• Hammer mills
• Belt drives

What's the advantage of using a four-lip split ring seal?

The advantage of using this type of ring seal is that axial movement of the shaft isn't restricted. This supports smooth running and system efficiency.
