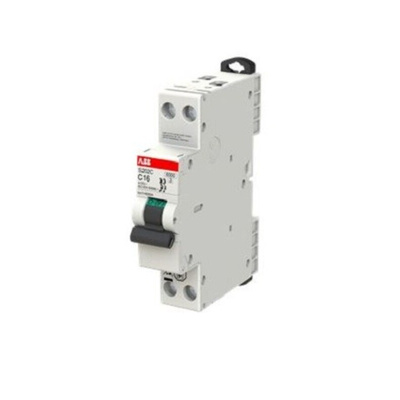

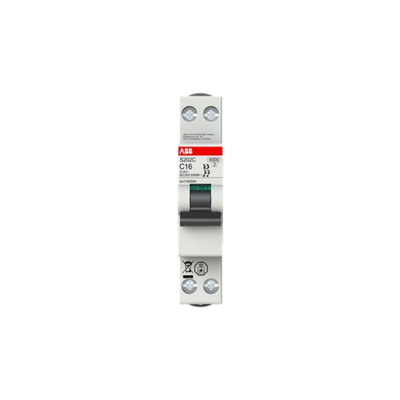

2CDS252280R0164, ABB S200C MCB, 2P, 16A Curve C, 415V AC, 6 kA Breaking Capacity

ABB MCB (Miniature Circuit Breaker), 2 Pole, Type C - S200C Series - 2CDS252280R0164

Prevent high currents from damaging your equipment with this MCB from ABB. It features type C breaking characteristics, meaning it protects your circuits from loads up to ten times higher than the breaker's current rating of 16A. Thanks to a voltage rating of 415V AC, this unit is suitable for use in high-power applications. For ease of installation, you can mount it on a DIN rail using the built-in mounting clips.

Features & Benefits

• Slim profile with a width of 17.8mm to save space in busy setups
• Colour-coded indication of circuit status for ease of monitoring – green for off, red for on
• Robust lifespan of 10,000 electrical cycles and 20,000 mechanical cycles for long-lasting performance
• Terminals have an IP20 (ingress protection) rating, meaning they're touch-proof and protected against objects larger than 12mm in size

Applications

• Computers
• Fluorescent lighting
• Small electric motors

Can I use this MCB at extreme temperatures?

Yes, thanks to its broad operating temperature range of -25°C to +55°C, it's suitable for use in extremely cold and hot environments.

Datasheet - 2CDS252280R0164

Catalogue - Miniature Circuit Breakers

S200C End of Life Instruction

S200C Series Overview

Product Environmental Profile
