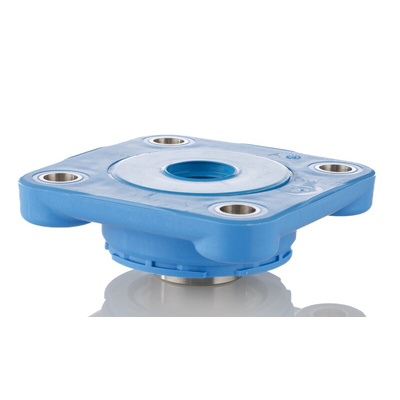

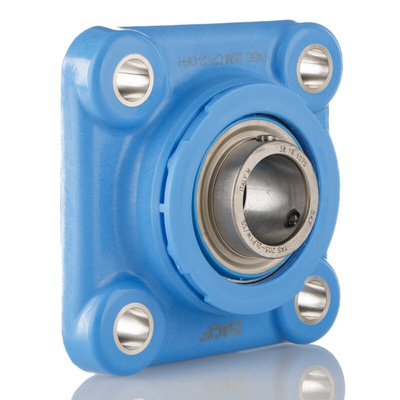

SKF 4 Hole Flange Bearing Unit, F4BC 25M-CPSS-DFH, 25mm ID

SKF Square Flanged Bearing Unit, 25mm ID, 4 Mounting Holes - F4BC 25M-CPSS-DFH

Choose this flanged ball bearing unit from SKF to securely hold a rotating shaft in food and beverage applications. The unit consists of an insert bearing mounted in a polypropylene (PP) housing that's strong and resistant to detergents and contaminants. Glass fibre reinforcement makes it resistant to wear and high temperatures, ensuring long-lasting use in harsh environments. Thanks to its dynamic load rating of 11.9kN and its static load rating of 7.8kN, the bearing can handle heavy-duty loads.

• Easily accommodates initial static misalignment by simply tilting the housing
• Limiting speed of 700rpm (rotations per minute) for reliable industrial use

Applications

• Medical and pharmaceutical industries
• Oil and gas industries
• Food and beverage processing

What type of bearing is supplied with this unit?

This unit is supplied with a ball bearing that's sealed for life with food-grade grease for safe use in hygienic environments.

Does this unit include back seals and an end cover?

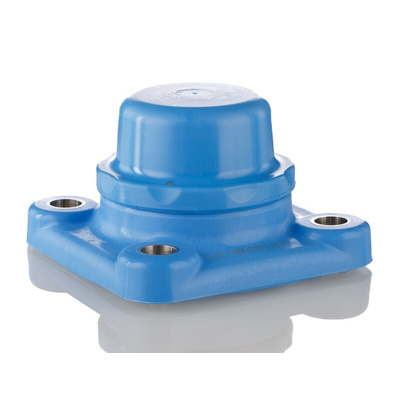

Yes. The back seals protect the bearing arrangement from shaft-side contamination, while the end cover protects the exposed shaft end, helping to avoid user injury.

Datasheet - F4BC 25M-CPSS-DFH

Catalogue - SKF Food Line Ball Bearing Units
