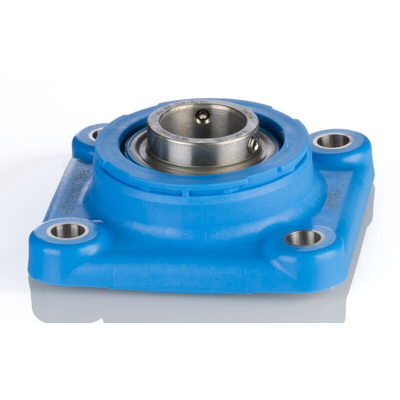

SKF 4 Hole Flange Bearing Unit, F4BC 30M-CPSS-DFH, 30mm ID

SKF 4-Hole Bearing Unit, 30mm ID, 112mm Length - F4BC 30M-CPSS-DFH

Reinforce the rotary components in your machinery with this bearing unit from SKF. It assists in transferring motion from one component to another to encourage mechanical efficiency. Thanks to a limiting speed of 700rpm (rotations per minute), it's a good choice for use in high-speed applications. The composite housing material is durable and corrosion-resistant for use in harsh environments. It's also easy to clean, making this bearing suitable for use in hygienic applications.

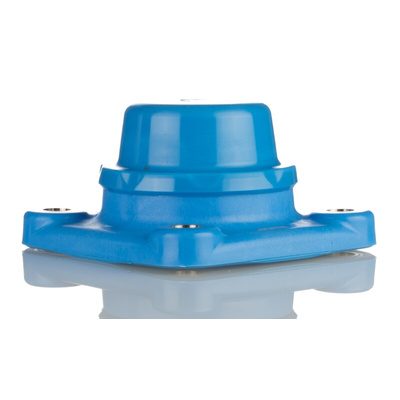

• Supplied with a back seal and an end cover to protect the mechanism from contaminants and improve its service life

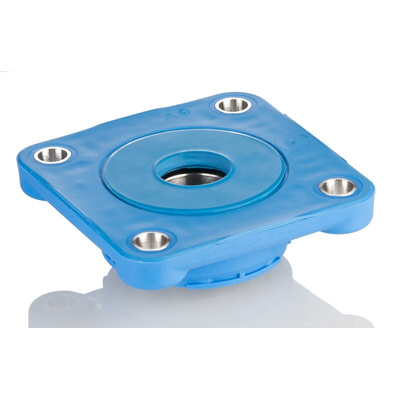

• Four mounting holes for screwing the unit securely in place
• Light weight of 0.53kg to minimise strain on equipment
• Pre-lubricated with a food-grade grease to reduce time and effort during setup

Applications

• Motors and industrial gearboxes
• Rolling mills
• Heating, ventilation and air conditioning (HVAC) systems

How heavy a load can this bearing unit handle?

This bearing unit has a static load rating of 11.2kN and a dynamic load rating of 16.3kN, meaning it can support heavy-duty stationary and moving loads.

Datasheet - F4BC 30M-CPSS-DFH

Specification Sheet - F4BC 30M-CPSS-DFH
