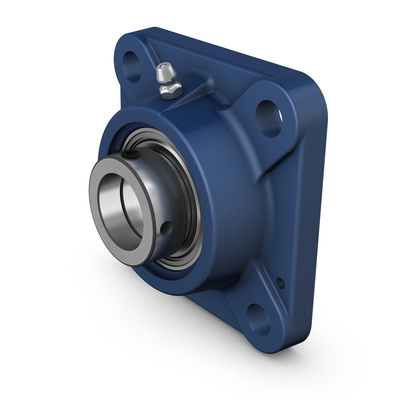

SKF 4 Hole Flange Bearing Unit, FY 40 FM, 40mm ID

SKF Flanged Bearing Unit, 4-Hole Flange Type, 40mm ID, 51.8 mm OD of Inner Ring, 1.8kg Weight - FY 40 FM

Need a quick and easy way to fit a rolling element? Reach for this flanged bearing unit from SKF. You simply bolt it to a machine's wall or frame to achieve secure and speedy installation. A locking device makes it easy to fit and remove a shaft. This means rod replacement and maintenance are hassle-free. As the bearing is mounted in a rugged cast-iron housing, you can depend on strong performance even in tough tasks.

Features & Benefits

• Pre-drilled mounting holes save time and effort
• Limiting speed of 4,800 r/min for use with fast-moving applications
• Dynamic load rating of 30.7kN makes it suitable for heavy-duty systems

Applications

• Agricultural machinery
• Healthcare equipment
• Aerospace applications
• Research and development labs

Is this bearing unit sealed?

Yes, it's sealed on both sides, so it's shielded from contaminants and delivers friction-free movement.

What size is this bearing unit?

It has an overall width of just 56.7mm and an inside diameter of 40mm, so it adds minimal bulk to your assembly.

Datasheet - FY 40 FM

Catalogue - Y-Bearings and Y-Bearing Units
