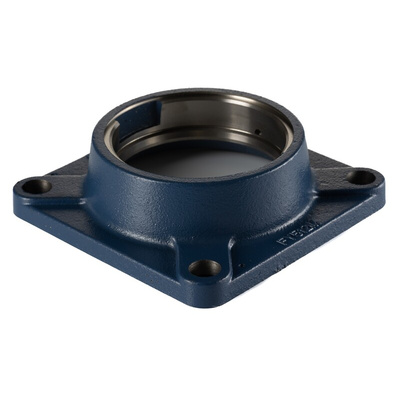

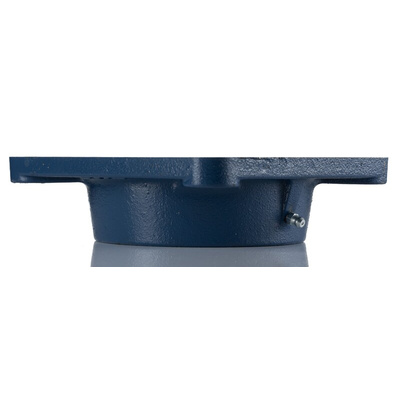

SKF 4 Hole Flange Bearing Unit, FY 512 M, 110mm ID

SKF Flanged Bearing Housing, Square Housing Shape, 175 (L) x 175 (W) x 52mm (D) - FY 512 M

To keep your machines working hard, even in tough conditions, choose this flanged bearing housing from SKF. It stops dust and moisture from getting to your insert, blocking out damage from contamination. A hard-wearing cast iron body means it shrugs off impacts, helping your components stand up to shocks. Mounting this frame to your support is done in no time thanks to its four simple bolt holes. The unit comes without an insert bearing, so you can choose the right one for your application.

Features & Benefits

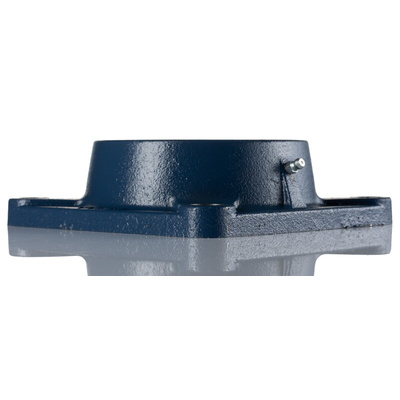

• Built-in relubrication hole helps make quick work of maintenance, with no need for dismounting
• Narrow measurements of 175 (L) x 175 (W) x 52mm (D) make it easy to fit in busy systems
• Body treated with corrosion-resistant paint and coating to stay strong in damp environments

Applications

• Cement processing
• Manufacturing industry
• Paper production

Does this housing affect the loads my bearing can handle?

No, this unit's cast iron body is strong enough to take the loads your insert bearing can handle.

Datasheet - FY 512 M

Catalogue - Y-Bearings & Y-Bearing Units
