SKF 3 Hole , FY 65 TF, 65mm ID

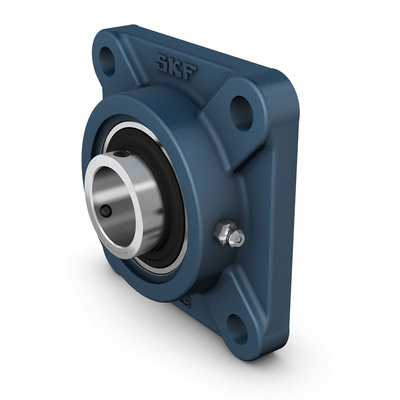

SKF Flanged Bearing Unit, Square Housing Shape, 3,000rpm Limiting Speed - FY 65 TF

Get your machines moving smoothly with this flanged bearing unit from SKF. It features an insert bearing that connects to rotating shafts, keeping processes rolling along to a limiting speed of 3,000rpm. Installation is a fuss-free process without the need for specialist tools, thanks to the four predrilled mounting holes on the unit's square body. A long lip is on hand to guide the rod into the bearing and ensure an accurate fit. As the unit comes pre-lubricated, it's ready to install right away so you can hop to the task at hand.

Features & Benefits

• Body depth of just 76.9mm for reliable shaft support in narrow spaces
• Built-in relubrication hole helps make quick work of routine maintenance
• Handles dynamic loads up to 57.2kN, so it's a safe bet for moving big loads
• Hardwearing NBR seals on all sides guard against dust and moisture to prevent corrosion

Applications

• Chemical processing
• Agricultural equipment
• Manufacturing industry

How much misalignment can this bearing unit tolerate?

This product copes with initial misalignment up to 5°, so it smooths over slight installation errors without suffering damage or disruption.

Datasheet - FY 65 TF
