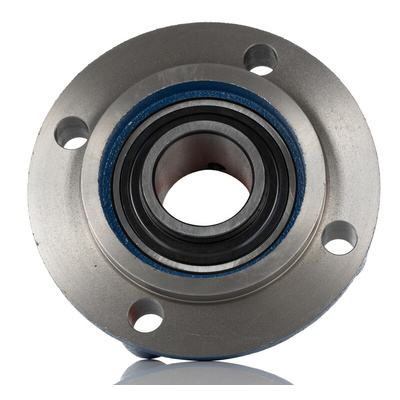

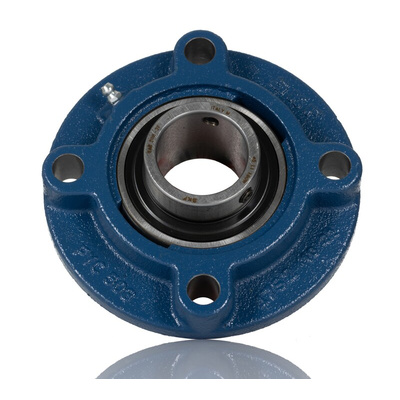

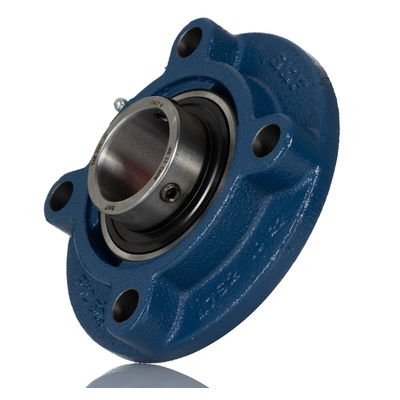

SKF 4 Hole Flange Bearing Unit, FYC 40 TF, 40mm ID

SKF Flanged Bearing Unit, Round Housing, Sealed Bearing, 40mm ID, 51.8mm OD - FYC 40 TF

For reliable shaft support in your heavy-duty application, pick this flanged bearing unit from SKF. You attach it to a surface by driving bolts through the four holes in its flanges to achieve a solid fix. As it carries dynamic loads up to 30.7kN, the component has no trouble handling substantial loads. You'll have no trouble using it in tough conditions as the insert bearing is sealed, shutting out damaging dust and moisture.

Features & Benefits

• Handles initial misalignment up to 5°, minimising risk of disruption from mounting errors
• Set-screw locking to cut down on vibrations at high speeds
• Built-in grease fitting for hassle-free relubrication
• Durable cast iron housing shakes off impacts
• Works with speeds up to 4800rpm to keep up with fast-moving processes

Applications

• Material handling
• Food production
• Industrial automation
• Agricultural machinery

When should I relubricate the unit?

How often you should relubricate this component depends on your application. To maintain its service life in humid settings, under heavy loads or through long periods of high-speed running, you should apply fresh grease before use.

Datasheet - FYC 40 TF

Catalogue - Y-Bearings and Y-Bearing Units
