SKF 2 Hole , FYTB 504 M, 47mm ID

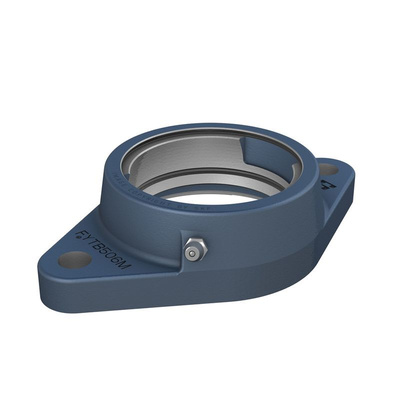

SKF Flanged Bearing Unit, Cast Iron, 47mm ID, 2 Mounting Holes - FYTB 504 M

Choose this flanged bearing unit from SKF to house your insert bearing and make mounting it on a shaft easy. It's designed to accommodate a shaft rotating at high speeds in different directions. The tough cast iron body offers resistance to impacts and corrosion, meaning this unit can withstand demanding operations. Thanks to its compact dimensions of 112 (length) x 29.5mm (width), you can easily fit this component in small spaces. It features lubrication holes that let you top up the grease and keep your system running smoothly.

• Inside diameter of 47mm to fit smaller shafts
• Two mounting holes for convenient attachment to a wall or machine
• Outer ring lip for secure hold on shaft

Applications

• Automotive engineering
• Conveyor systems
• Aviation industry
• Packaging machinery

How do I assemble an insert bearing in this flanged housing?

To mount an insert bearing in this housing, assemble it in the fitting slots of the housing and turn the bearing 90°. You can use a pipe or piece of wood to adjust it and ensure proper positioning. It's advisable to ensure that any misalignment between the bearing and housing is less than 2° to make sure you still have easy access to the lubrication holes.
