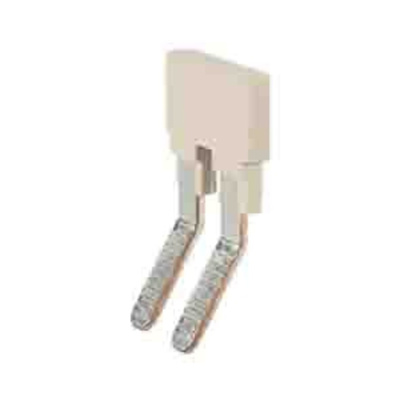

RS PRO Jumper Male Straight Beige Jumper Link 2 Way 1 Row 6.1mm Pitch

RS PRO 2 Pole Jumper Link

From RS PRO a high-quality jumper link designed for use with Optocouplers. This jumper link is male with a straight orientation, has two contact poles, 6.1mm pitch and a voltage rating of 1000 V.

Also known as;

• Side insert bridge
• Short circuit plates

Features and Benefits

• Poles 2
• Operating Temperature -25°C to 60°C
• Storage Temperature -40°C to 70°C
• Insulating material PA

Specification

• Approvals: UL IEC
• Dimension: 6.1mm x (P-1) +5.5
• Voltage: 1000 V
• Colour: Grey
• Amperage: 32 amps

Compatible Optocouplers

• RE-0014, RE-0504, RE-0514, RE-0554, RE-0564, RE-2604, RE-2614 and RE-2674

Applications

RS PRO jumper links are used with Optocouplers in a wide range of applications such as;

• Communications equipment
• Process automation
• Machine controls

Why would you choose RS PRO ?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards and only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
