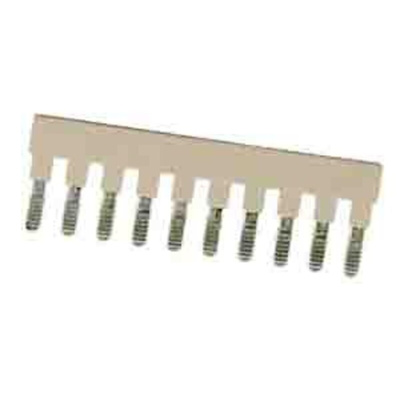

RS PRO Jumper Male Straight Beige Jumper Link 10 Way 1 Row 6.1mm Pitch

RS PRO 10 Pole Jumper Link

From RS PRO a high-quality jumper link designed for use with Optocouplers. This jumper link is male with a straight orientation, has 10 contact poles, 6.1mm pitch and a voltage rating of 630V.

Also known as;

• Side insert bridge
• Short circuit plates

Features and Benefits

• 10 Poles
• Operating Temperature -40°C to 105°C
• Insulating material: PA66
• Insert Material: Copper alloy/ Tin plated

Specification

• Approvals: UL IEC
• Dimension A: 54.9 mm
• Dimension B: 60.4 mm
• Insulation withstands voltage 2000 Vac/1 min
• Voltage: 630 V
• Colour: Grey
• Amperage: 32 amps

Compatible Optocouplers

• RE-0014, RE-0504, RE-0514, RE-0554, RE-0564, RE-2604, RE-2614 and RE-2674

Applications

RS PRO jumper links are used with Optocouplers in a wide range of applications such as;

• Communications equipment
• Process automation
• Machine controls
