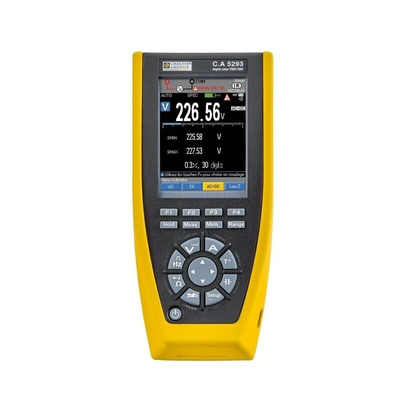

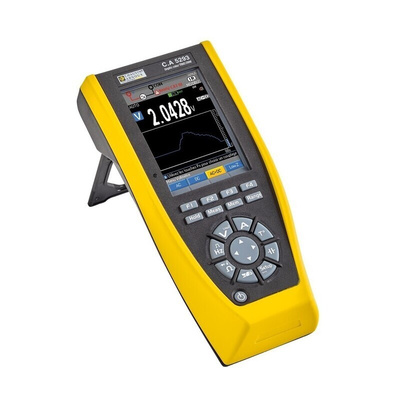

P01196803, Chauvin Arnoux CA 5293 Handheld Color Graphical Multimeter, 20A ac Max, 20A dc Max, 1000V ac Max

The Chauvin Arnoux CA 5293 are portable multimeters with graphical colour display can be used for direct measurement of the main electrical quantities and instantaneous viewing of the trends and waveform. These multimeters are compact, rugged, watertight and specially designed for easy handling. It is a self-contained digital multimeter, specially designed to group in a single instrument the following electrical measurement functions like AC, DC, and AC+DC voltage measurement
Low-impedance AC voltage measurement
AC, DC, and AC+DC current measurement
Frequency measurement
Resistance measurement
Capacitance measurement
Temperature measurement. Four combinations of two languages are available: English/Italian, English/Spanish, English/ German and English/French. As default, the multimeter contains English/French. It comes with set of rechargeable batteries,Multifix adapter for DMM,Kit of Test Accessories for DMM,Carrying case with Multifix

Graphical display of trends with multiple parameters and waveform up to 600 Hz
Multiple analytical tools: time/date-stamped Min/Max/Avg and Peak monitoring, filtering, duty cycle
Optimized ergonomics: IP67 watertight casing, safety measurement terminals as per IEC61010 1000V CAT III/600V CAT IV, power supply via USB charger
Top-of-the-range specifications: 100 kcts, 200 kHz bandwidth and 0.02% accuracy
Up to 10,000 measurements stored in memory
