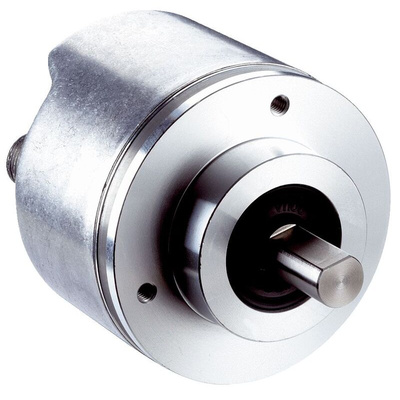

A3M60B-S4PB013X13, Sick A3M60 PROFIBUS Series Absolute Absolute Encoder, 8192 ppr, Solid Type, 10mm Shaft

Overview

At a glance

Rugged absolute multiturn encoder with up to 31 bits (14-bit singleturn and 17-bit multiturn)
Face mount flange, servo flange or blind hollow shaft
Compact design (<70 mm)
Integrated PROFIBUS interface with DP V0, V1, and V2 functionality (depending on type)
Connectivity: 3 x M12 male connector
Protection class up to IP67
Operating temperature: –30 to +80 °C (depending on type)

Your Benefit

Maximum system throughput, even under extreme ambient conditions
Reduced maintenance costs due to wear-free magnetic singleturn and multiturn scanning
Space-saving and cost-efficient design - the best solution, particularly when installation space is limited
High productivity thanks to fast communication and position calculation
Immune to contamination and condensation - ideal for tough ambient conditions
High performance at a cost-efficient price

The A3M60 PROFIBUS is an extremely rugged absolute multiturn encoder inside a 60 mm housing. Maximum reliability even in the harshest of ambient conditions is attained by means of magnetic scanning, both with singleturn and multiturn detection. New singleturn technology combines the durability of a magnetic sensor with high resolutions, previously only possible with optical systems. The innovative, gearless multiturn technology keeps the number of moving components on the A3M60 to a minimum. This results in a long service life with low maintenance costs and consequently optimum system availability. The highly compact technology in single and multiturn detection provides the user a space-saving and cost-efficient solution. Together with the integrated PROFIBUS interface, the A3M60 is particularly suited for applications where installation space is tight.

Applications

Measurement of absolute position in various machines and systems such as palletizers, high-bay warehouses, cranes, presses, printing machines
Position detection of the crane gripper
Monitoring the positions of wafer carriers
Positioning and speed measurement
Positioning the lift
SICK encoders for crane systems
Adjustment of the spreader for containers of different sizes
Synchronization of drive motors in the hot rolling process
Rotary valve operation for carbon and sinter supply
Position detection of furnace door in collection and holding furnaces

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - A3M60B-S4PB013X13
