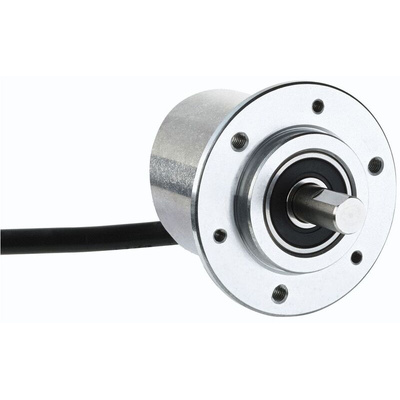

DBS50E-S5EL00100, Sick DBS50 Core Series Incremental Incremental Encoder, 100 ppr, HTL Signal, Solid Type, 8mm Shaft

Overview

At a glance

Universal cable connection
Face mount flange with 8 mm solid shaft
Face mount flange with 2 mounting hole patterns, servo clamps with servo grooves or triangular servo clamps
Communication interfaces: TTL/RS-422, HTL/push pull, Open Collector
Number of lines from 10 to 2,500 possible
Temperature range: –20 °C ... +85 °C
Enclosure rating: IP65

Your Benefit

The universal cable connection enables the device to be used in tight spaces and provides cable routing flexibility
The different flanges allow the device to be mounted with servo clamps, or mounted at the front or rear side. This enables the device to be replaced without modifying the application
The high flexibility of the mechanical interface of the encoder and the available accessories allow for the use of a single design in many applications
The compact housing diameter saves valuable space
Long-term and reliable operation thanks to a high enclosure rating, temperature resistance and bearing lifetime

The DBS50 Core incremental encoder features impressively high mechanical flexibility, excellent technical properties, and a number of variations. The DBS50 Core has a 50 mm diameter face mount flange and an 8 mm diameter solid shaft. The housing, which measures 37 mm in diameter and less than 36 mm in length, is extremely compact and saves valuable installation space. The DBS50 Core offers a comprehensive range of mounting options thanks to its numerous mounting hole patterns, servo clamps, servo grooves, and triangular servo clamps. The encoder has compact dimensions and a universal cable connection that allows for cables to run in an axial or radial direction.

Applications

There are numerous application possibilities for positioning and speed measurement, such as in the textile industry, propulsion technology, storage and conveyor, packaging machines, printing presses, glass industry, and elevators

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - DBS50E-S5EL00100
