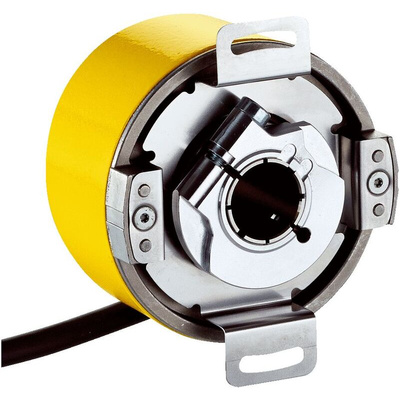

DFS60S-BEOK01024, Sick DFS60S Pro Series Safety Encoder Incremental Encoder, 1024 ppr, Sin/Cos Signal, 12mm Shaft

Overview

At a glance

Encoders for functional safety technology: SIL2 (IEC 61508), SILCL2 (EN 62061), PL d (EN ISO 13849)
Electrical interface: 4.5 V ... 32 V
sine/cosine 1 VPP
1,024 periods
Clamping flange or servo flange, blind hollow shaft or through hollow shaft (assembly options with feather key)
Universal cable outlet, M23 or M12 male connector, axial or radial
Enclosure rating: IP65
Working temperature range: –30°C ... +95°C (depending on type)

Your Benefit

Certified safety products ensuring the best possible protection for persons, machinery, and systems
Easy and practical handling of safety functions with all-in-one solutions from a single source, safety functions with the Flexi Soft motion control modules FX3-MOC0 by SICK: safe stop 1 (SS1), safe stop 2 (SS2), safe operating stop (SOS), safe speed monitoring (SSM), safely limited speed (SLS), safe direction (SDI), safe brake control (SBC)
Force fit and tight fit for mechanical reliability
Certified safety products instead of standard products reduce the scope of safety engineering
Versatile connection options for high levels of flexibility and straightforward implementation
Compact installation depth for compatibility with applications in which installation space is limited

Safe electrical and mechanical design, easy system implementation and flexible application possibilities. The DFS60S Pro is an incremental encoder for functional safety. It supports safety functions conforming to IEC 61800-5-2. The high enclosure rating, wide temperature range and generous ball bearing clearance are the key to enhanced durability. They make the DFS60S Pro the universal motion control sensor for stationary and mobile safety applications.

Applications

Safe speed monitoring on automated guided vehicles (AGV)
Safe speed monitoring on automated guided vehicles (AGV)
Access protection
Safe speed monitoring
Safety solutions allowing automated guided carts to travel at high speeds
Efficient set-up of roller drives
Monitoring of direction of travel and speed for automated guided carts
Safe speed in automated production
Protection of automated guided vehicles
Safe speed for automated guided vehicle systems
Safe motion monitoring of automated guided vehicles (AGVs) made easy
Access monitoring and protection of casting system
Protection of slag preparation machine
Protection of slag preparation system
Protection of mills
Safe mill standstill
Protection of filter systems
Safe rotary kiln standstill
Monitoring of conveyor speed of anode transport track
Protection of anode transport track
Monitoring conveyor belt operation

875

784

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - DFS60S-BEOK01024
