52015750+52003540, Lapp SKINDICHT Series Metallic Nickel Plated Brass Cable Gland, PG21 Thread, 11mm Min, 18mm Max, IP68, Кабельный ввод

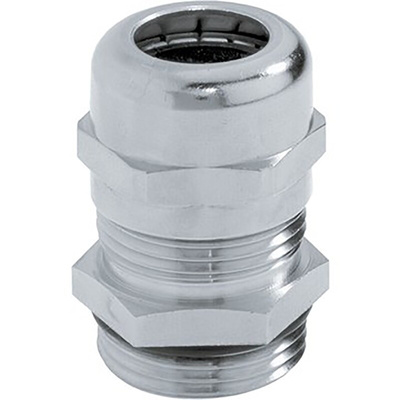

Lapp IP68 PG Round Top Cable Gland

From Lapp, this Skintop gland has a durable nickel-plated brass construction, and offers excellent protection and maximum reliability in cable management.
With a simple screw-on action the gland is easy to fit, which can reduce assembly time, and has a variable clamping range. It also provides an optimum of strain relief, protecting cables from damage by wear and tear.

This Skintop cable gland is incredibly resilient, offering not only great mechanical protection, but also resistance to temperature and corrosion. As such, the gland can be used in demanding environments, and presents a low maintenance solution for cable connection.

Features and Benefits

• IP68, 10 Bar
• Optimum Strain Relief
• Robust Construction
• Chemical Resistance
• Temperature Resistance
• Corrosion Resistance

Applications

The Skintop cable gland is designed to be used in panels, junction boxes and machinery housing where mechanical and chemical stability are vital.

• Chemical Industry
• Measurement and Control
• Machine and Equipment Manufacturing
• Plant Engineering

Environment

The cable gland is sealed to IP68, which means it has excellent protection against particle ingress, and is water proof even when immersed. This means the glans is suitable for use in harsh environments, and even some open air applications.

Supplied with

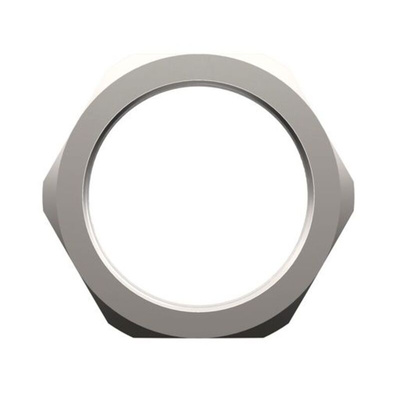

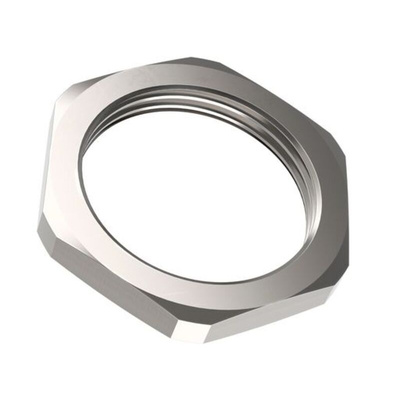

Lock nut

LAPP Cable Gland, 11 to 18mm Clamping Range, Locknut Included - SKINTOP Series - 52015750+52003540

Take the strain off your cable connection with this cable gland from LAPP. It securely attaches a power cord to your equipment and helps to protect it against twisting and pulling. This extends the longevity of your cable and keeps it in top-notch shape. This device is a cinch to fit, as you can simply screw it in place.

Features & Benefits

• Includes a locknut to hold the unit securely
• IP68 rating means it's dust-tight and protected against immersion in up to 1.5m of water for 30 minutes
• Nickel-plated brass construction resists wear and corrosion

Applications

• Measurement and control technology
• Chemical industry
• Plant engineering
• Machine and equipment manufacturing

Can I adjust this cable gland's clamping range?

Yes. For convenience, this fastener has a wide clamping range between 11 and 18mm to fit cables of different sizes.

Datasheet

Cable Gland Selection Chart

Lapp Datasheet 2127668

Lapp Datasheet 2127668

2127668 Datasheet

Instruction Sheet - 53015600

Datasheet - SKINDICHT SM
