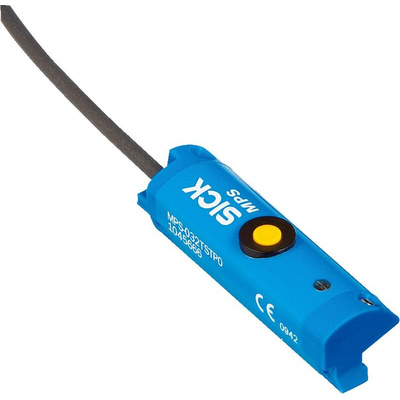

MPS-032THTP0 Manufacturer Series, MPS-032THTP0 | Sick Magnetic Cylinder Sensor - Position Sensor Pneumatic Position Detector, IP67, 15 → 30V dc, MPS-T, with LED

Overview
At a glance
Position sensor for direct mounting in T-slots on pneumatic cylindersSensor variants with measuring ranges of 32 mm to 256 mmAnalog outputs (for current or voltage), switching output, and IO-LinkMounting on other cylinder types (e.g., round body cylinders) is possible with adapters
Your Benefit
Rapid mounting and exchange of sensors with drop-inStraightforward installation as no additional mechanical components or position elements are requiredCan be integrated into the machine at any time, as the sensor is attached to the cylinder externallyEasy adjustment of sensor settings and parameters during operation using a teach field or IO-LinkMore flexibility compared to conventional cylinder sensors, as it is possible to define multiple switching points in the smallest of spacesLong service life thanks to non-contact measurement principleAdvanced diagnostic options thanks to data transmission via IO-Link
MPS-T position sensors continuously detect the piston position of pneumatic actuators using a direct, non-contact method. They can be mounted in T-slots without the need for additional accessories. The sensor settings can be adjusted during installation and during operation later on, using a teach pad or – depending on the variant – using IO-Link. The sensors continuously supply data via analog outputs or IO-Link, enabling flexible machine concepts and making it possible to solve tasks in areas such as quality monitoring and process control in conjunction with pneumatic cylinders and drives. This continuous transfer of position data upgrades the functionality of the pneumatic cylinders by making them more intelligent – and, as a result, more versatile.
Applications
Thread quantity detection when sewing AirbagsMaterial weakness detection for brake pedalsCylinder positioning in the color marking stationPositioning of the pneumatic cylinder in the gripperDetection of dancer positionIncreasing machine performance with magnetic cylinder sensorsTactile double sheet monitoringMeasuring the wood thickness to adjust the pressing unitMeasuring the film tensionPosition monitoring of sonotrodes when welding plasticsScrew gun guidance and monitoring screw-in depthMonitoring of a press-fit cylinder using the MPS-TFlexible positioning of cylindersMeasuring the film tension
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
