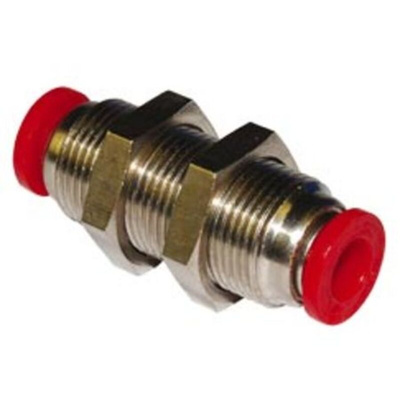

C00291000, Norgren Pneufit C Series

The IMI Norgren Pneufit C0029 series push-in bulkhead connector fittings is ready to use, offering fast assembly with no need for tools and providing optimum flow. This fittings has a nickel plated brass housing with releasable stainless-steel grab-ring to grip nylon or polyurethane tube (85 or 95 durometer). The nickel plated brass components provide corrosion and contamination resistance and an extended life.

Threaded connection = M20x1
Tube size = 10mm
Operating pressure = 10bar
Immediate quality sealing using silicone free U-packing
Ambient temperature = -20°C to 60°
Overall length = 45mm
Medium = compressed air

Datasheet - C00291000
