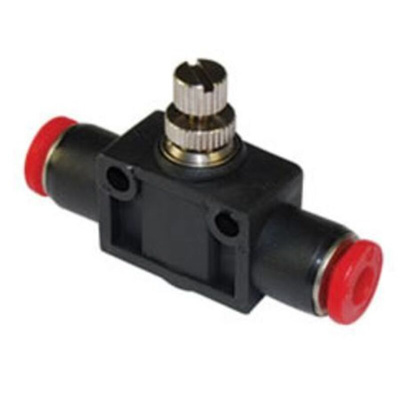

C00GE0400, Norgren Pneufit C Series Tube In-line Regulator, Push In 4mm Tube Inlet Port x Push In 4mm Tube Outlet Port

IMI Norgren In-Line Regulator, Uni-Directional, -0.9 to 10 Bar Operating Pressure - Pneufit C Series - C00GE0400

This in-line regulator from IMI Norgren helps you to get your pneumatic circuit up to speed by maintaining a constant flow of outlet pressure. It quickly irons out inlet pressure fluctuations, so is more than a match for unreliable conditions. There's no need to work up a sweat during installation, as its push-in fittings allow for tool-free assembly. A stainless steel grab ring makes an air-tight seal and is releasable, so you can remove your hose without worrying about causing damage. This component stays the course in demanding environments, thanks to a PBT body that resists corrosion and contaminants.

• Suitable to use with PA or PUR tubing to best suit your application's needs
• Nitrile rubber seals withstand high pressure with little risk of tearing
• Lockable flow rate adjuster knob to make it tamperproof
• Wide ambient air temperature range between -20°C and +60°C means it's compatible with harsh settings

Applications

• Mining and minerals processing
• Medical and pharmaceutical industries
• Automated assembly lines
• Aerospace technology

The IMI Norgren Pneufit C00GE series in-line flow control (uni-directional)fittings is ready to use, offering fast assembly with no need for tools and providing optimum flow. This fittings has a nickel plated brass housing with releasable stainless-steel grab-ring to grip nylon or polyurethane tube (85 or 95 durometer). The nickel plated brass components provide corrosion and contamination resistance and an extended life.

What size ports does this regulator have?

Tube port A= 4mm
Tube port B = 11mm
Operating pressure = 10bar
High flow performance
In-line or panel mounting
Adjustment can be locked
Ambient temperature = -20°C to 60°
Medium = compressed air

The inlet and outlet ports of this regulator are both 4mm, so are compatible with standard pipes.

Datasheet - C00GE0400
