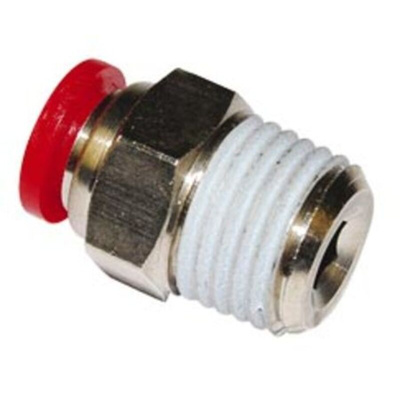

Norgren Pneufit C Series Straight Fitting, Push In 4 mm to R 1/4, Threaded-to-Tube Connection Style, C01250428

IMI Norgren Pneumatic Fitting, Straight Threaded-to-Tube Type, 20.5mm Length - PNEUFIT C Series - C01250428

Linking tubes and components is a cinch when you use this pneumatic fitting from IMI Norgren. The threaded-to-tube adapter is just the thing to connect 4mm-diameter tubes in a compressed air circuit. Simply push in the hose then screw the R1/4 connector to a port for speedy, tool-free installation. A releasable grab ring keeps your pipe in place to prevent disconnections and downtimes. The unit's body is made from tough nickel-plated brass to handle corrosion and contamination, so you can be sure it has the stamina to go the distance.

Features & Benefits

• Robust NBR O-rings and U-packing are silicone-free for eco-friendliness
• POM release sleeve and backing ring for high mechanical strength
• Wide operating temperature range between -20°C to +60°C for use in harsh environments

Applications

• Medical equipment
• Industrial pumps and compressors
• Automated factory processes
• Transport industry

What pressures can this pneumatic fitting handle?

It handles pressures between -0.9 and 10 bar, so you can use it with low-duty and medium-duty applications.

What size is the fitting?

A length of only 20.5mm means it's a compact gadget that easily squeezes into tight spaces.

Datasheet - C01250428

Catalogue - Industrial Automation
