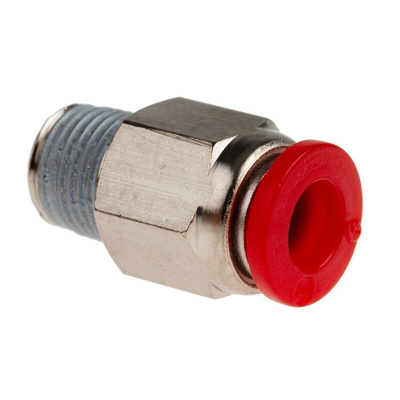

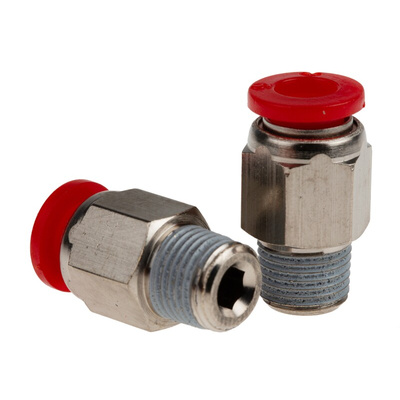

C01250618, Norgren Straight Threaded Adaptor, Push In 6 mm to R 1/8, Threaded-to-Tube Connection Style

IMI Norgren Threaded-To-Tube Straight Adaptor, R1/8 To Push-In 6mm - PNEUFIT Series - C01250618

Keep compressed air flowing optimally with this straight threaded-to-tube adaptor from IMI Norgren. It's made from nickel-plated brass and PBT (polybutylene terephthalate) for enhanced durability and protection against corrosion, ensuring reliable, long-lasting performance. A stainless-steel grab ring firmly holds softer tubing in place without causing any surface damage. Its push-in connector end allows for fast, tool-free assembly, saving you time and effort during installation. As it can withstand operating pressures ranging from -0.9 to 10 bar, it's suitable for use in both high-pressure and low-pressure systems.

Features & Benefits

• Wide operating temperature range of -20°C to +60°C for use in challenging industrial environments
• Compatible with both PA (polyamide) and PUR (polyurethane) hoses for versatile use
• Light weight of 0.01kg to reduce strain on hoses
• NBR (nitrile butadiene rubber) seal to prevent leaks and improve efficiency

Applications

• Mining and mineral processing
• Pneumatic hand tools
• Medical and pharmaceutical industry

Does this adaptor have a release ring?

Yes, this adaptor has a release ring, so disassembly is quick, simple and won't damage your pneumatic pipes.

Datasheet - C01250618
