C01250828, Norgren Straight Threaded Adaptor, Push In 8 mm to R 1/4, Threaded-to-Tube Connection Style

IMI Norgren Threaded-To-Tube Push-In Fitting, 8mm to R1/4 - Pneufit C Series - C01250828

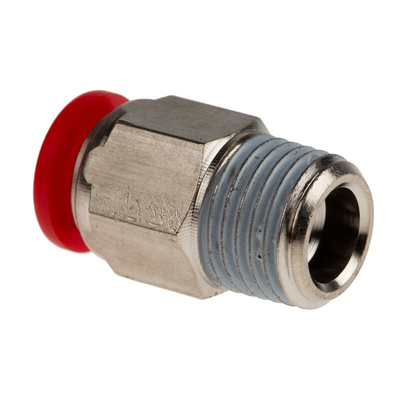

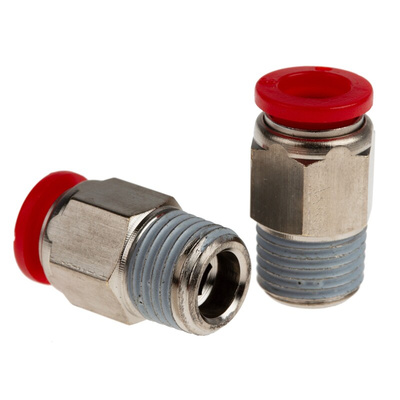

This threaded-to-tube fitting from IMI Norgren assists the rapid assembly of a pneumatic circuit. Its push-in connector is easy to insert into a hose without using any tools. The fitting features U-shaped sealing lips that become increasingly energised as application pressure increases to ensure a leak-free join at all times. The seals are silicone-free to reduce the risk of static discharge attracting contaminants that could pollute compressed air. This versatile fitting is suitable to use in a wide operating pressure range of -0.9 to 10 bar.

Features & Benefits

• Hard-wearing polybutylene terephthalate (PBT) body for use in harsh working environments
• Nitrile rubber (NBR) seals are resistant to tearing and abrasion for an extended working life
• Supplied ready-to-use for convenience and immediate installation
• Space-saving fitting with compact dimensions of 26 (L) x 16mm (D)
• Wide operating temperature range of 0°C to +60°C so suitable to use in both hot and cold operating conditions

Applications

• Laboratories and medical facilities
• Industrial automation
• Agricultural equipment
• Lifting and hoisting

What pneumatic tubing can I use this fitting with?

This fitting is suitable to use with either nylon or polyurethane pneumatic tubing with an outer diameter of 8mm.

Datasheet - C01250828
