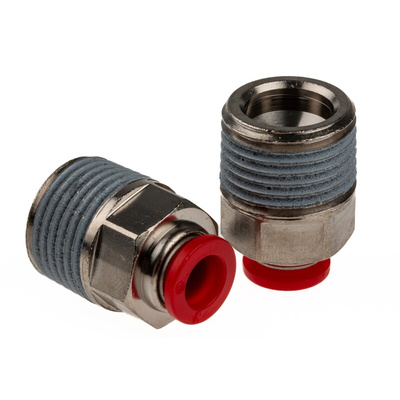

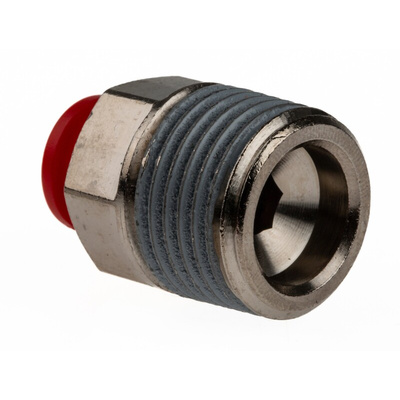

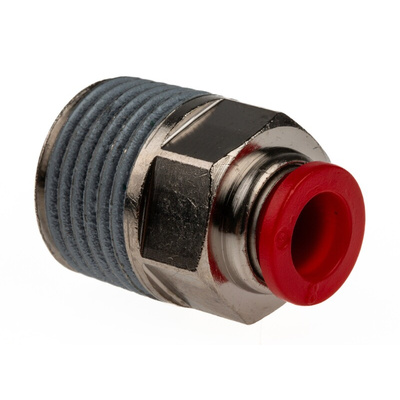

C01250848, Norgren PNEUFIT Series Straight Fitting, Push In 8 mm to R 1/2, Threaded-to-Tube Connection Style

IMI Norgren Threaded-To-Tube Pneumatic Fitting, 8mm Push-In to R1/2 - C01250848

Quickly adapt an R1/2 threaded connection to accept 8mm tubing with this pneumatic fitting from IMI Norgren. It comes ready to use and you won't need tools to secure it onto your compressed air equipment. Simply screw the fitting in place and the tapered thread ensures a firm hold. On the other end, a push-in connector means you can easily attach and detach tubes, for convenient and flexible use. This adapter works with pneumatic systems running between -0.9 and 10 bar, such as paint sprayers, filtration apparatus and electronics assembly equipment.

Features & Benefits

• Wide operating temperature between -20°C and +60°C for use in demanding conditions
• Seal made from nitrile butadiene rubber (NBR) is reliably durable in high temperatures and is silicone-free to minimise contamination
• Nickel-plated brass housing resists corrosion and wear, to deliver a long service life

Applications

• Automotive industry
• Pharmaceutical manufacturing
• Electronics assembly
• Industrial automation

How does the push-in connector grip tubes?

The push-in connector on this pneumatic fitting grips tubes using a collet that automatically closes around the tube wall. An O-ring creates the seal. For best results, make sure the end of your tube is neatly squared off.

Datasheet - C01250848
