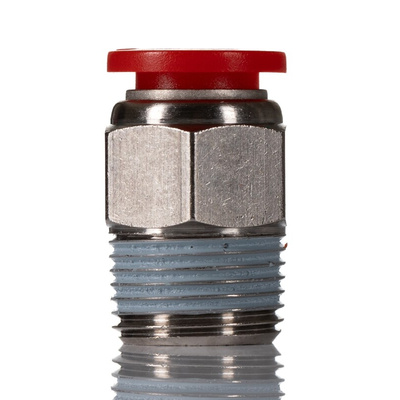

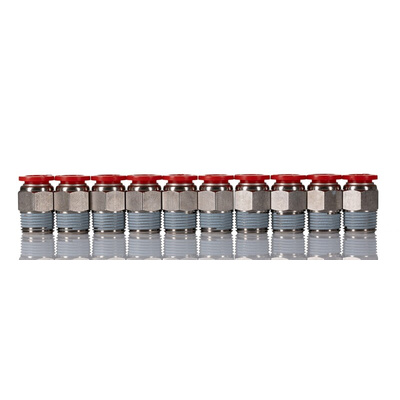

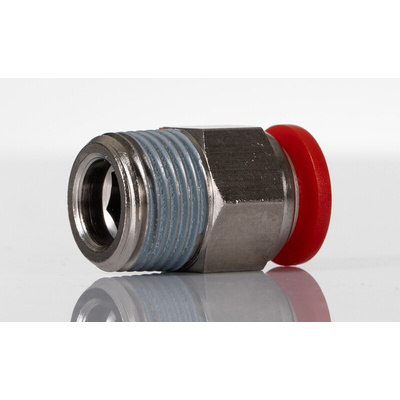

C01251038, Norgren Pneufit C Series Straight Threaded Adaptor, Push In 10 mm to R 3/8, Threaded-to-Tube Connection Style, Pneufit

IMI Norgren Pneumatic Fitting, Silicone-Free NBR Seals, Straight Body Configuration - PNEUFIT C Series - C01251038

Keen to connect compressed air lines? Reach for this straight pneumatic fitting from IMI Norgren. It has a 10mm push-in connector on one side that grips PA and PUR tubing gently but firmly using an internal grab ring and collet. Thanks to the tapered R3/8 thread on the other end with pre-applied sealant, creating leak-free joints is a piece of cake. All you'll need is a size 8 and 17 spanners. The adapter's NBR seals also help prevent leaks to give you stable system pressures up to 10 bar.

Features & Benefits

• Safe to use in harsh environments and industrial applications, as it's suited to ambient and media temperatures between 0°C and +60°C
• Threaded elements made of nickel-plated brass to resist corrosion and media contamination
• Rugged PBT body fends off impacts, making it a safe bet near moving machinery
• Push-in connectors speed up installation as no tools are needed

Applications

• Construction industry
• Automotive manufacture
• Pharmaceutical production

What's the benefit of this fitting's internal hex?

As this adapter supports internal as well as external hex adjustment, it's easy to tweak the fit in confined spaces with a simple Allen key.
