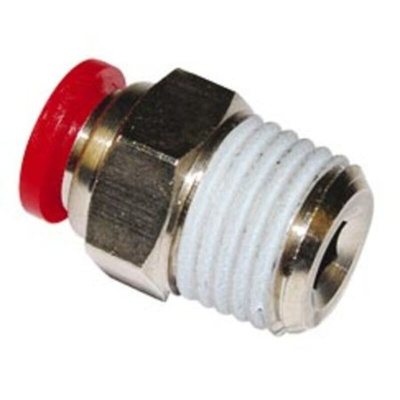

C01251248, Norgren PNEUFIT Series Straight Threaded Adaptor, Push In 12 mm to R 1/2, Threaded-to-Tube Connection Style

IMI Norgren Pneumatic Fitting, Threaded-to-Tube Connector, -0.9 to 10 Bar Operating Pressure Range - C01251248

For reliable pipe-to-tube transmission of compressed air in pneumatic systems, choose this connector from IMI Norgren. On one end, there's a push-in connector for air hoses and the other end has a standard R1/2 male threaded plug to link to an air supply pipe. The adapter's nickel-plated brass housing is resistant to corrosion and contamination, giving you an extended service life even in harsh settings. It also has nitrile rubber seals to prevent leakages and optimise airflow in your pneumatic network.

Features & Benefits

• Maximum operating pressure of 10 bar ensures it's safe to use in a wide range of low to medium pressure applications
• Wide operating temperature range of 0°C to +60°C for use in challenging conditions

Applications

• Low-pressure pumps
• Compressors
• Beverage mixers

How long is this adapter?

This adapter is 30mm long, so it's a compact option and suitable for setups with limited space.

Do I need any tools to install this connector?

Yes, a simple wrench is all you need to fasten this connector onto pipes.

Datasheet - C01251248
