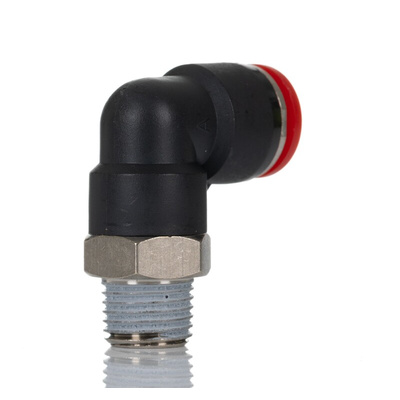

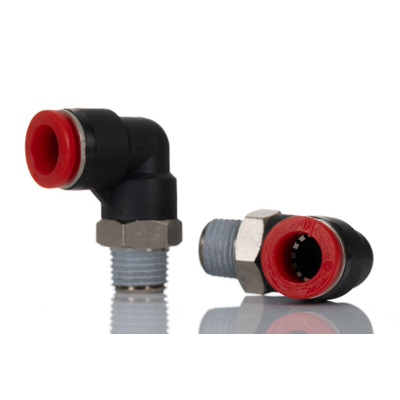

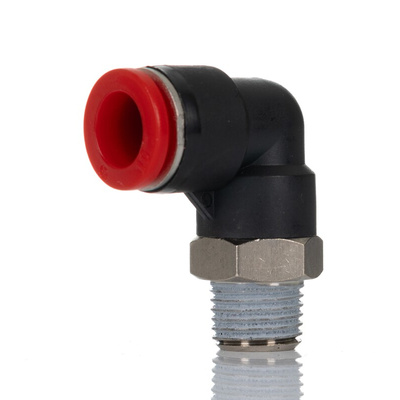

C01471028, Norgren Pneufit C Series Swivel Elbow, R 1/4 to Push In 10 mm, Threaded-to-Tube Connection Style

IMI Norgren Pneumatic Fitting, Swivel Elbow Adapter, 10 Bar Maximum Operating Pressure - Pneufit C Series - C01471028

Keep your compressed air circuit going with the flow using this pneumatic fitting from IMI Norgren. The elbow-shaped adapter is just what you need to connect air pipes at a 90° angle, which helps to save on space in constricted areas. As the unit is designed for optimal airflow, you can count on it to keep your pneumatic circuit running at full tilt. A handy swivel function that lets you set it up to suit your system. Thanks to its durable PBT body, this fitting is built to shrug off the demands of challenging environments.

Features & Benefits

• Performs reliably at ambient temperatures between -20°C and +60°C
• Grab ring holds an air hose securely without causing damage
• Fast and tool-free assembly for convenience
• Versatile fitting is compatible with both PA and softer PUR tubing

Applications

• Food and beverage industries
• Automotive manufacturing
• Aerospace technology
• Construction and earthmoving equipment

What type of seals does this pneumatic fitting have?

The component has NBR seals that withstand high pressures of up to 10 bar without cracking. This helps to keep your air circuits running reliably.
