C0K510828, Norgren Pneufit C Series Threaded In-line Regulator, Push In 8mm Tube Inlet Port x Push In 8mm Tube Outlet Port

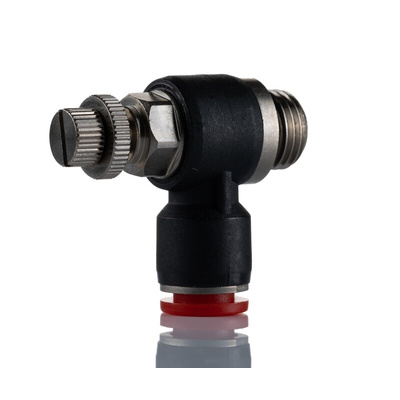

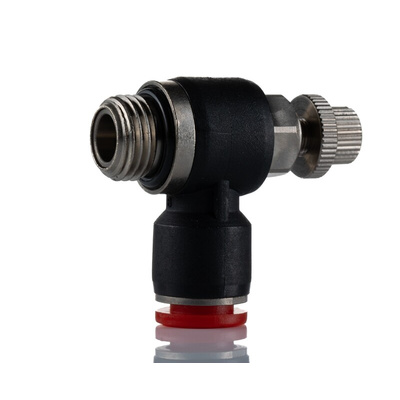

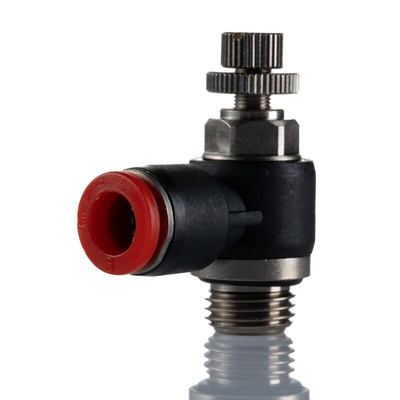

IMI Norgren In-Line Regulator, Banjo Type, Threaded Inlet Port - Pneufit C Series - C0K510828

Go with the flow, while making safety a priority, with this IMI Norgren in-line regulator. It's a banjo-type device that keeps your pneumatic system ticking over smoothly by controlling the airspeed from an attached cylinder. The housing is made from nickel-plated brass, so it resists corrosion and contaminant damage to deliver a long service life. The regulator comes with a push-fit connector that makes it simple to assemble, which saves you time. It can be installed directly into cylinder ports for no-fuss, efficient performance.

Features & Benefits

• Wide-ranging ambient temperature range of -20°C to +60°C
• Releasable stainless steel grab-ring to easily grip nylon or polyurethane tubes
• 10 bar operating pressure for use with demanding systems

Applications

• Production lines
• Manufacturing facilities
• Industrial vacuum systems
• Automotive production

What are flow control regulators?

Flow control regulators like this one are pneumatic function fittings that connect tubes and hoses to valves, cylinders or air-powered systems. They support safety and stability in your systems.

What size ports does this device have?

The unit has an 8mm tube inlet and an 8mm tube outlet, for easy compatibility with standard equipment.

Datasheet - C0K510828
