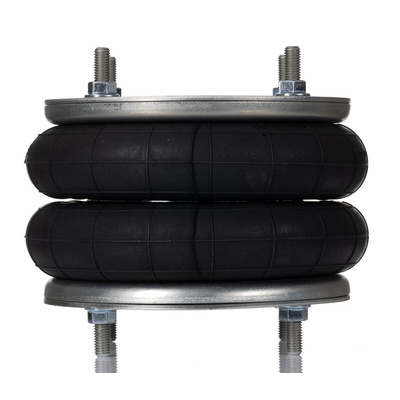

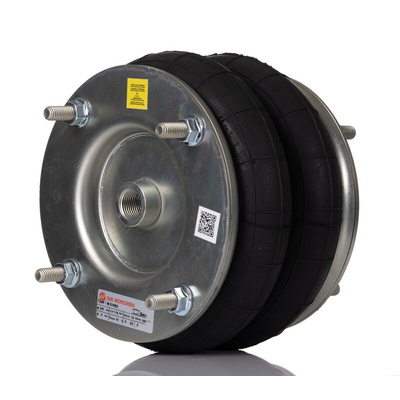

Norgren Compact Air Bellows M/31082, 2 convolution , 175mm Stroke

IMI Norgren Compact Air Bellows, G1/2 Pneumatic Port Thread, 250mm Installation Height - M/31000 Series - M/31082

Get heavy items moving through your sorting system with these compact air bellows from IMI Norgren. By achieving forces up to 17,650N, they make short work of large loads to effectively handle demanding transport tasks. Thanks to their low-friction design, the bellows cut down on disruptive vibrations to ensure stable product movement. Hard-wearing rubber construction means they shrug off nicks and scratches to deliver a long service life. As the bellows deliver a short 175mm stroke length, they're a sure fit for handling objects in confined spaces.

Features & Benefits

• Tolerate tilt angles up to 10° to minimise disruption from misalignment
• Compact 8-inch base diameter tucks neatly into busy setups
• Chrome-plated steel end plates resist corrosion to keep going in damp settings
• G1/2 threaded pneumatic connection for wide compatibility with standard machinery
• Safe to operate in temperatures between -40°C and +70°C

Applications

• Material handling
• Fulfilment centres
• Packaging industry

What media can I use these compact air bellows with?

This product works with clean and lubricated compressed air, nitrogen and water supplies, making it a versatile fit for standard applications.

Datasheet - M/31082
