Norgren 20mm Flat NBR Suction Cup M/58405/01, G 1/8A in, Пневматическая присоска

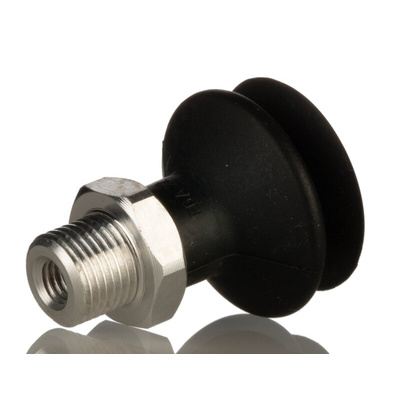

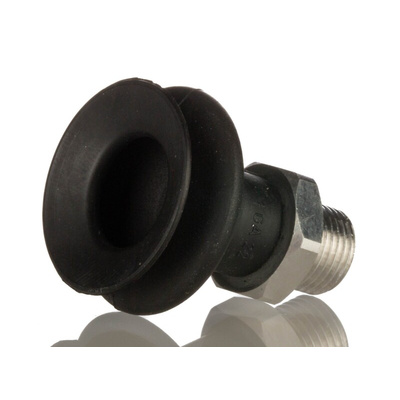

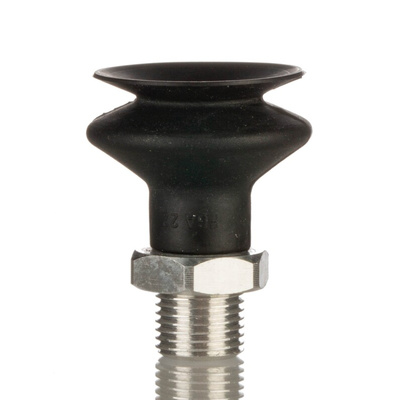

IMI Norgren Suction Cup, 20mm Diameter, 14N Holding Force - M58400 Series - M/58405/01

Easily handle awkward objects with this suction cup from IMI Norgren. A holding force of 14N enables the picking up and movement of items in automated systems. The flexible bellows-style design means it can grip workpieces even when their surfaces aren't completely level. Thanks to its nitrile butadiene rubber (NBR) material, the cup is resistant to oils, chemicals and stress, making it a reliable industrial choice. It comes with a chromium-plated steel bolt that's strong and hard-wearing. This gives you a long-lasting component that doesn't need to be replaced frequently.

Features & Benefits

• Pad diameter of 20mm for precise handling of smaller items
• Wide operating temperature between -10°C and +70 °C for use in demanding environments
• Screw thread makes it quick to fit on standard systems, minimising installation time

Applications

• Electronics manufacturing
• Packaging systems
• Food and beverage processing
• Chemical industry

Is a suction cup the same as a vacuum sucker?

Yes, both suction cups and vacuum suckers are the same thing. Basically, they consist of a flexible cup and a connecting bolt to attach it to your pneumatic system.

Datasheet - M/58405/01
