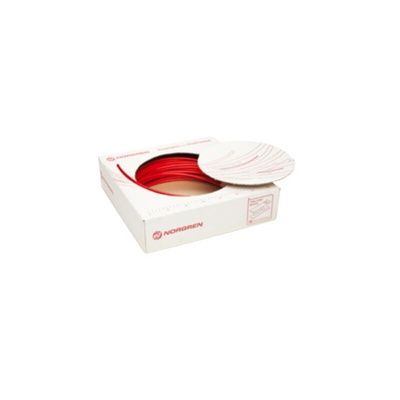

PA2-0104025C, Norgren Compressed Air Pipe Red Plastic 4mm x 25m PA2 Series

IMI Norgren Compressed Air Pipe, 31 Bar Maximum Operating Pressure, -40°C to +80°C Operating Temperature Range - PA2 Series - PA2-0104025C

Need a compressed air pipe that bends over backwards to make your air-supply connections work? Reach for this one from IMI Norgren. Made from polyamide type 12, this nylon tubing is fully plasticised to ensure it's pliable and resistant to wear and impact. A minimum bend radius of 25mm gives you the flexibility to reach around corners and feed it through equipment. It's also light stabilised, ensuring it stays strong when it's used outdoors. This pipe's red colour is simple to spot in complex systems.

Features & Benefits

• Performs reliably in temperatures of -40°C to +80°C
• 25m reel gives you scope to make long pipeline connections
• Easy to cut into smaller lengths for versatility

Applications

• Commercial vehicles
• Pneumatic equipment
• Industrial automation
• HVAC systems

What's the diameter of this compressed air pipe?

The tubing has an outer diameter of 4mm and inner diameter of 2.5mm for wide compatibility with regulation systems and fittings.

What's the maximum pressure the pipe can stand?

This air hose is capable of working with pressures up to 31 bar when temperatures are between -40°C and +20°C, so it takes the strain of heavy-duty applications.
