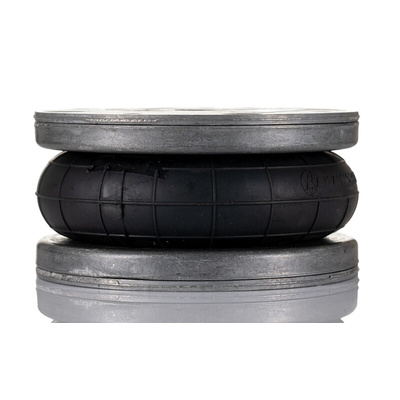

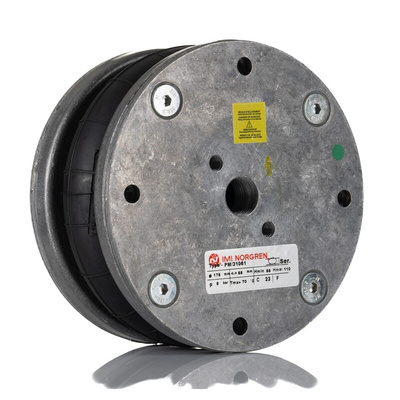

Norgren Compact Air Bellows PM/31061, 1 convolution , 55mm Stroke

IMI Norgren Compact Air Bellows, 0 to 8 Bar Operating Pressure Range, 55mm Stroke Length - PM/31000 Series - PM/31061

Need to raise or lower heavy or oddly-shaped equipment? Choose these single-acting compact air bellows from IMI Norgren. The unit uses return spring action that isolates vibration and impact to protect hardware and extend the lifespan of systems. Frictionless moving and clamping mean it helps boost efficiency. It's a lubrication-free part so it needs little to no maintenance. Robust aluminium end plates withstand corrosive and abrasive damage to handle the pressures of heavy-duty applications.

Features & Benefits

• 2kg weight adds minimal strain to your setup
• Wide operating temperature range between -30°C and +50°C for use in demanding conditions
• Minimum height of 55mm when it's depressurised, so fits neatly into smaller systems

Applications

• Pressure rollers
• Tension belts
• Rail applications
• Automated factory processes
• Scissor and platform lifts

What's the port size of these compact air bellows?

The component has a versatile port size of G1/2, making it compatible with standard fittings.

What's the diameter of the bellows?

This product has a streamlined nominal diameter of 152.4mm to save space in pneumatic installations.

Datasheet - PM/31061
