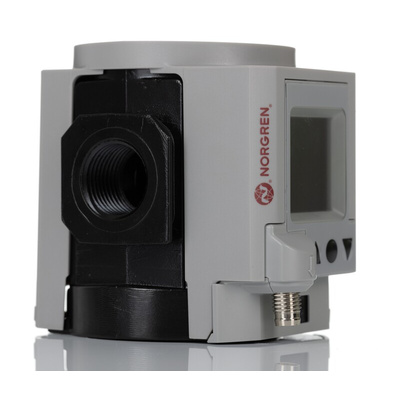

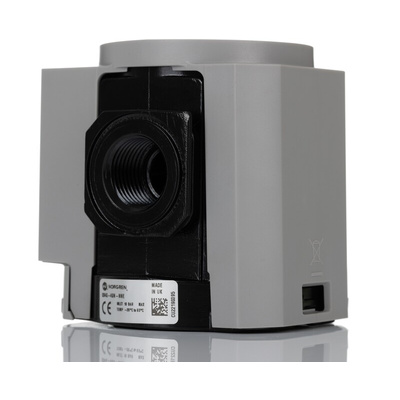

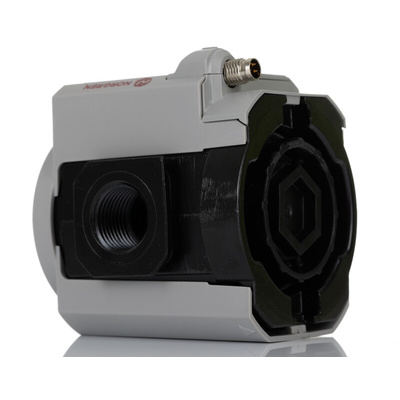

Norgren M8 x 1 Female Digital Vacuum Gauge 10bar Bottom Entry, Q84G-4GN-NNE, 0bar min.

IMI Norgren Pressure Sensor Module, Up To 1.5% FS Accuracy, IO-Link Compatible - Excelon Plus Series - Q84G-4GN-NNE

Need the help of a secondary pressure monitor? Reach for this pressure sensor module from IMI Norgren. Its advanced digital technology means it takes precise electronic measurements between 0 and 10 bar with super-accurate results up to 1.5% of full scale. Thanks to its handy IO-link compatibility, you can adjust settings such as tolerance, hysteresis and output type or state via the unit's front buttons. Alternatively, features can be tweaked remotely as part of a wider pneumatic network. A robust die-cast aluminium and ABS construction makes the module a great shout for complex compressed air assemblies in demanding industrial spaces.

Features & Benefits

• Suitable for use as a digital pressure switch or pressure transducer for application versatility
• Full-colour LCD display delivers colour-coded status info so you get bold visual alerts
• Industry-standard G1/2 port makes connecting your pneumatic line a cinch

Applications

• HVAC systems
• Industrial hydraulics
• Compressors
• Medical engineering

Can I use this product in freezing conditions?

Yes, this product's ambient and media temperature range of -20°C to +65°C means it's suitable for tough sub-zero tasks. You'll just need to ensure your supply of compressed air is dry enough to avoid ice formation if you use the module below +2°C.

Datasheet - Q84G-4GN-NNE

Instruction Sheet - Excelon Plus

Manual - Excelon Plus Integrated Electronic Pressure Sensor
