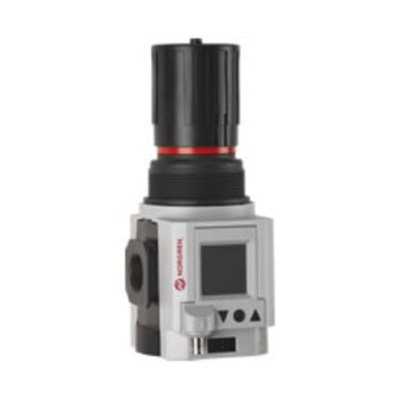

R84G-6GK-RME, Norgren G 3/4 Pneumatic Regulator - 0.3bar to 10bar, 3/4 in, 20bar max. input

IMI Norgren Pneumatic Regulator, 1.44" Graphic Display, Electronic Pressure Sensor - Excelon Plus Series - R84G-6GK-RME

Bring your air prep into the modern age with this pressure regulator from IMI Norgren. An integrated electronic sensor keeps track of your system's air pressure, while its rotary knob means you can tweak it between 0.3 and 10 bar. Fitted with a full-colour graphic display, a few quick scrolls and clicks are all you need to set hysteresis, tolerance and temperature units. The screen handily turns red or green to let you know when your supply is running outside or inside these limits. You can network the regulator to remotely set parameters and monitor your flow with ease thanks to the unit's IO-link connection.

Features & Benefits

• Media temperature range between -20°C and +65°C suits a host of different applications
• Die-cast aluminium and ABS body make it strong and durable
• Suitable for inline and modular installation to give you connection flexibility

Applications

• Aerospace industry
• Automotive manufacturing
• Food processing
• Medical equipment
• Air compressors

Does this pneumatic regulator come with any electrical protections?

Yes. Overvoltage, short-circuit and reverse-polarity protections prevent electrical faults from causing damage to this pneumatic regulator.

Datasheet - R84G-6GK-RME

Installation Guide - 82,84 Series

Brochure - Excelon Plus
